2-Channel Taxi Vehicle DVR SD Card Recorder with Ignition Recording & Wide Voltage Protection
2-Channel Taxi Vehicle DVR SD Card Recorder with Ignition Recording & Wide Voltage Protection
Share
Couldn't load pickup availability

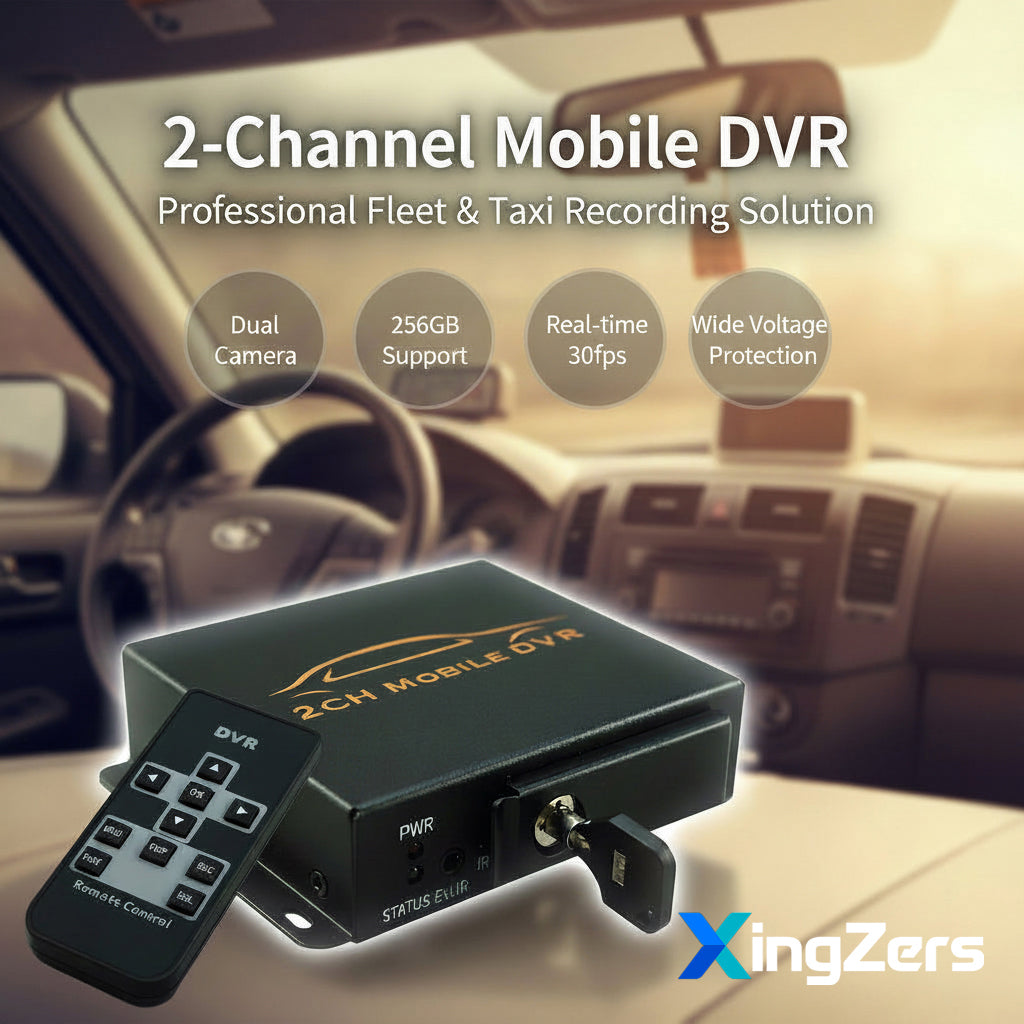

Professional 2-Channel Vehicle DVR for Taxi & Fleet Monitoring
Designed specifically for taxi and commercial vehicle applications, this compact dual-channel DVR delivers reliable, real-time recording with exceptional stability and shock resistance. Perfect for fleet management and driver safety monitoring.
Six Core Features
- High Voltage Protection: Safeguards your device from voltage spikes and electrical surges
- Data Protection: Built-in security lock prevents unauthorized access to SD card data
- 30fps Real-Time Recording: Smooth, continuous video capture without frame drops
- Multiple Recording Modes: Boot recording, motion detection, and manual recording options
- Power-Off Protection: Built-in lithium battery ensures safe shutdown without manual intervention
- 256GB Support: Large capacity storage with automatic loop recording
Technical Specifications
| Video Input | Dual CVBS Input (Audio/Video Sync) |
| Video Output | 1 CVBS Output (Audio/Video Sync) |
| TVOUT Format | NTSC/PAL Auto-Adaptive Output |
| Video Compression | MPEG-4 |
| Video Format | ASF |
| Resolution | Dual VGA Sync (640 × 480/576) Real-time |
| Audio Compression | 8KHZ/ADPCM |
| Audio Format | MP3 |
| SD Card Capacity | 1-256GB |
| Frame Rate | 5fps / 15fps / 30fps |
| Recording Duration | 5min / 15min / 30min / 60min |
| Language | Chinese Simplified, Chinese Traditional, English (Customizable) |
| Recording Mode | Boot Recording, Motion Detection, Manual Recording |
| Time Stamp | Supports date/time watermark display or can be disabled |
| Storage Mode | Configurable "Stop When Full" or "Auto Loop Overwrite" |
| Control Method | Remote Control |
| Standby Protection | 180mA |
| Input Voltage | 9-35V |
| Power Consumption | ≤2.5W |
| Operating Temperature | -20°C to +60°C |
Technical Highlights
Aviation-Grade Connectors: Secure, reliable connections that won't come loose during vehicle operation. Main unit can power both cameras and display screen for simplified installation.
Wide Voltage Design (9-35V): Operates reliably despite vehicle voltage fluctuations. High voltage protection prevents damage from power surges.
Instant Playback: Review footage directly on connected display or via SD card on computer
Smart Storage Management: Choose between "Record Stop" and "Auto Loop" modes. The intelligent loop recording ensures you never run out of storage space while preserving critical footage.
Physical Specifications
- Dimensions: 110mm × 85mm × 28mm
- Weight: 150g
Easy Installation & Operation
DC port connects to vehicle cigarette lighter or battery. CAM1 and CAM2 ports support flexible camera placement. AVOUT port enables simultaneous recording and viewing on vehicle navigation display.
Remote Control: Convenient wireless operation for easy access to settings and playback

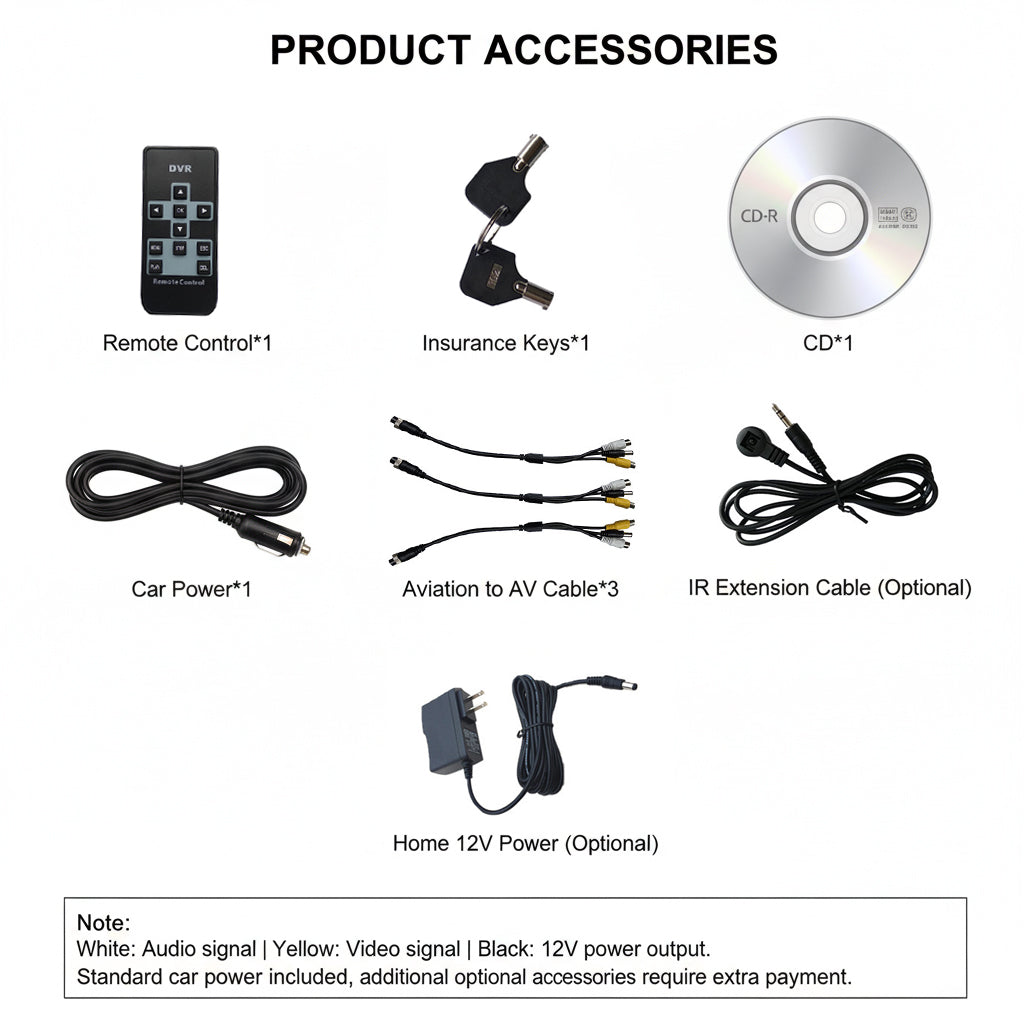

What's Included
- DVR Main Unit
- IR Remote Control × 1
- Security Key × 1
- Installation CD × 1
- Vehicle Power Adapter × 1
- Aviation to AV Cables × 3
Optional accessories available: 12V Home Power Adapter, IR Extension Cable
Cable Color Guide
- White: Audio Signal
- Yellow: Video Signal
- Black: 12V Power Output
Note: Standard package includes vehicle power adapter. Additional accessories available at extra cost.
Custom Solutions Available
We offer custom development and OEM module solutions. Contact us for bulk orders or specialized requirements.
