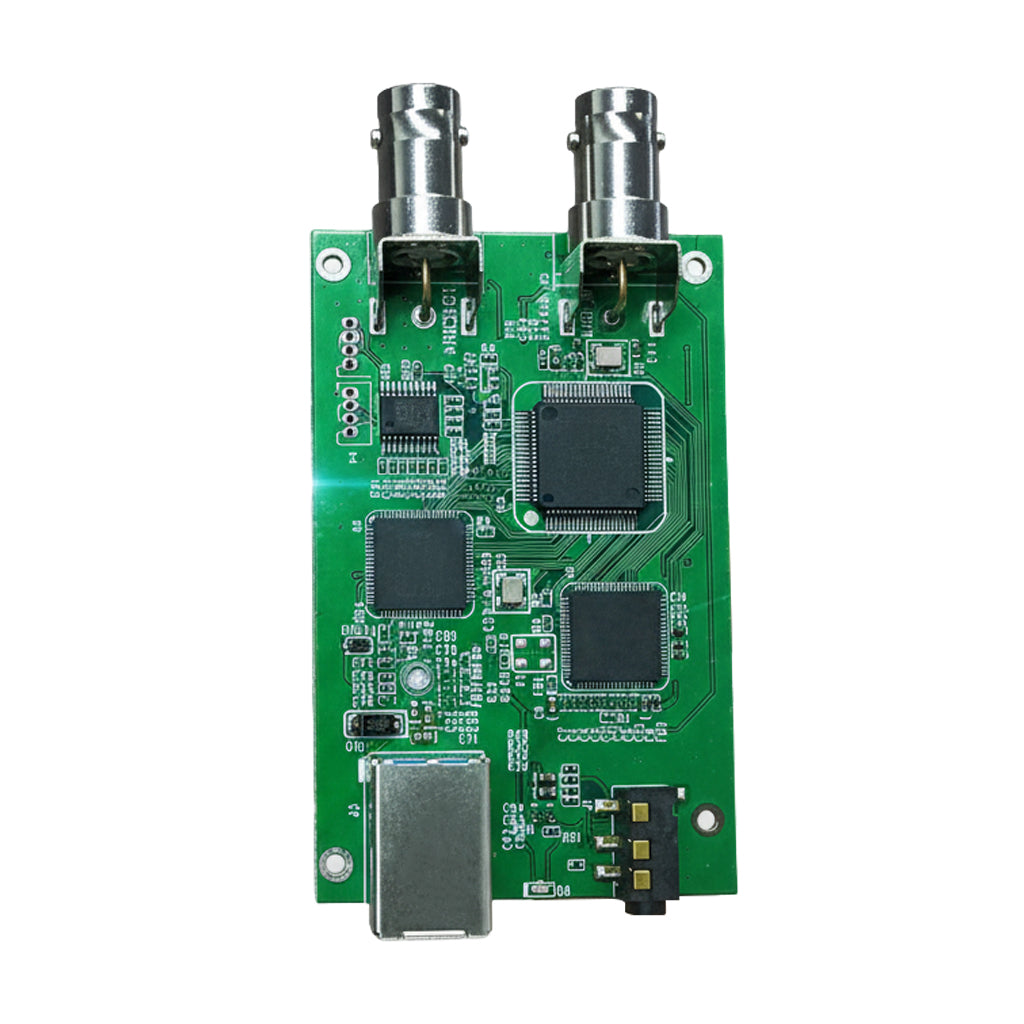

4-in-1 AHD Video Capture Module Board USB 3.0 - 1080P 30FPS CVBS TVI CVI PCB for Security Camera, Medical Imaging, Conference & Live Streaming Integration

Product Overview

The 4-in-1 AHD Video Capture Module Board is a professional-grade PCB module designed for integration into security systems, medical equipment, conference devices, and live streaming solutions. This bare circuit board provides a complete video capture solution that converts AHD, CVBS, TVI, and CVI camera signals into USB 3.0 video streams.

This is a module board for integration - not a finished consumer product. It is designed for OEM manufacturers, system integrators, and electronics professionals who need to embed video capture functionality into their own devices, enclosures, or custom equipment.

Supporting lossless loop out, synchronized microphone audio input, and driver-free operation based on UVC/UAC standards, this module delivers stable 1080P at 30FPS and 720P at 60FPS real-time capture performance.

The module features self-developed hardware and firmware, enabling full OEM customization for PCB layout modifications, custom functions, firmware adjustments, and bulk production orders.

Key Features

• Bare PCB Module Board – Ready for integration into custom enclosures, devices, or embedded systems. Customers can install this module into their own products.

• 4-in-1 Signal Support – Compatible with AHD, CVBS, TVI, and CVI camera signals for maximum versatility in security and surveillance applications.

• USB 3.0 High-Speed Capture – Stable real-time capture up to 1080P at 30FPS or 720P at 60FPS with minimal latency.

• Lossless Loop Out – BNC loop output allows simultaneous display on a monitor while capturing the video signal without quality loss.

• Driver-Free Plug and Play – Fully compliant with UVC and UAC protocols, no driver installation required on Windows, Linux, or Android.

• Synchronized Audio Input – 3.5mm microphone input for capturing audio alongside video streams.

• Professional Software Support – Compatible with OBS, PotPlayer, AMCap, VLC, and USB Camera apps for flexible recording and streaming.

• Compact PCB Design – Ultra-compact board size (75×47mm) and lightweight (20g), perfect for space-constrained installations.

• Low Power Consumption – USB-powered operation with power consumption under 3W, no external power supply needed.

• OEM Customization Available – Hardware and software independently developed, supports custom functions and PCB design for bulk orders.

Technical Specifications

How It Works

The 4-in-1 Capture Module Board converts AHD, CVBS, TVI, and CVI camera signals into USB video streams. Once integrated into your device, it enables computers, laptops, and mobile devices to capture and record surveillance camera footage with synchronized audio input via microphone.

Integration Instructions

Step 1: Install the module board into your custom enclosure or device housing.

Step 2: Connect your camera signal source to the module's 4-in-1 Input BNC interface. If you need loop out functionality, connect to the Looping Out interface.

Step 3: Connect the module's USB Output to your computer via USB cable, or to your mobile device using an OTG adapter (driver-free).

Step 4: If audio input is needed, connect your audio signal to the Mic In interface.

Step 5: On your computer, open your capture software (OBS, PotPlayer, VLC, etc.), select the device "4in1_Cap Video" and activate it. The LED indicator will flash red, confirming successful signal capture.

Typical Applications

• Security Surveillance Systems – Integrate into DVR/NVR systems, security monitoring stations, or custom surveillance equipment to capture and record footage from AHD, TVI, CVI, and CVBS security cameras.

• Medical Equipment Video Capture – Embed into medical imaging devices, diagnostic equipment, ultrasound systems, or surgical recording devices to capture medical video output.

• Enterprise Video Conferencing – Build into conference room systems, video conferencing equipment, or professional meeting devices to integrate camera feeds.

• Education and Training – Install into classroom recording systems, training equipment, or educational devices to capture demonstrations and lectures.

• Fishing Detection and Exploration – Integrate into underwater camera systems, fish finders, or marine exploration equipment to record underwater footage.

• Live Streaming and Content Creation – Build into streaming devices, content creation equipment, or broadcast systems to stream surveillance camera feeds or create content using analog camera sources.

What You Get

This is a bare PCB module board with all electronic components pre-soldered and tested. It includes:

• 1× Video Capture PCB Module Board with BNC connectors and USB 3.0 interface
• Pre-programmed firmware (UVC/UAC compliant)
• All surface-mount components assembled and tested

Important Note: This is NOT a finished consumer product. It does not include an enclosure, mounting hardware, or cables. This module is designed for customers to integrate into their own devices or enclosures.

OEM Customization Services

We offer comprehensive OEM customization for bulk orders:

• PCB Layout Modification – Adjust board dimensions, connector positions, or add custom interfaces to fit your specific device requirements.

• Firmware Customization – Modify capture parameters, add custom features, or implement specific protocols for your application.

• Function Enhancement – Add additional inputs/outputs, integrate with other modules, or implement custom processing capabilities.

• White Label Production – Custom branding, packaging, and documentation for your brand.

• Volume Manufacturing – Competitive pricing for bulk orders with flexible MOQ.

Contact us for OEM inquiries and custom development projects.

Important Notes

• This is a bare PCB module board intended for integration by technically skilled users, OEM manufacturers, or system integrators. It requires proper installation into a suitable enclosure or device.

• It is normal for the module to feel warm during operation. The circuit board is designed with wide temperature tolerance, and extended use will not affect device lifespan.

• For best performance, ensure your camera signal matches one of the supported formats (AHD, TVI, CVI, or CVBS).

• USB 3.0 connection is recommended for optimal 1080P 30FPS or 720P 60FPS capture performance.

• Ensure proper ventilation when integrating this module into enclosed devices.
