Item No: XZS-VC-A17
12–24V 4.2A Dual USB-A Panel Mount Car Charger with Dual Illuminated LED Rings for Motorcycles, RVs and Boats

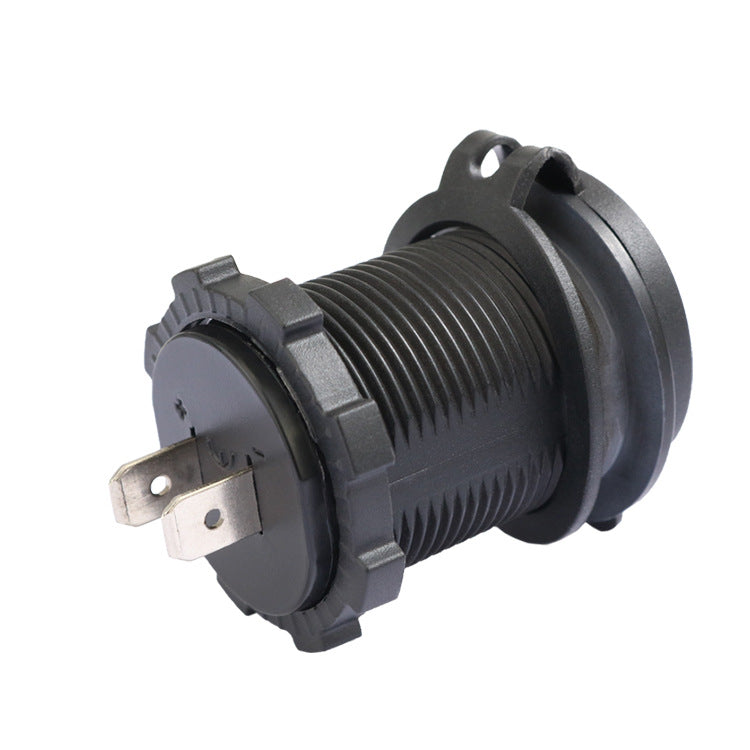

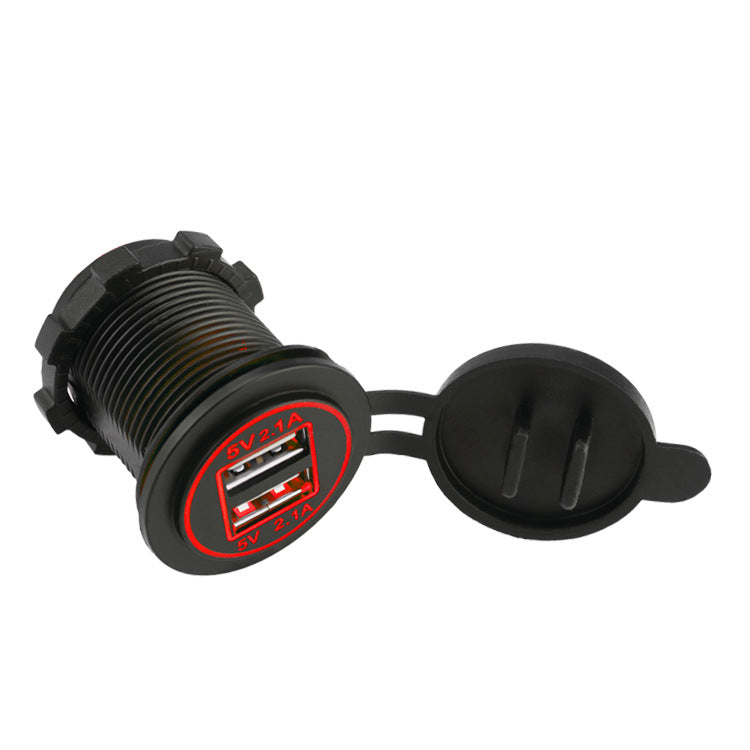

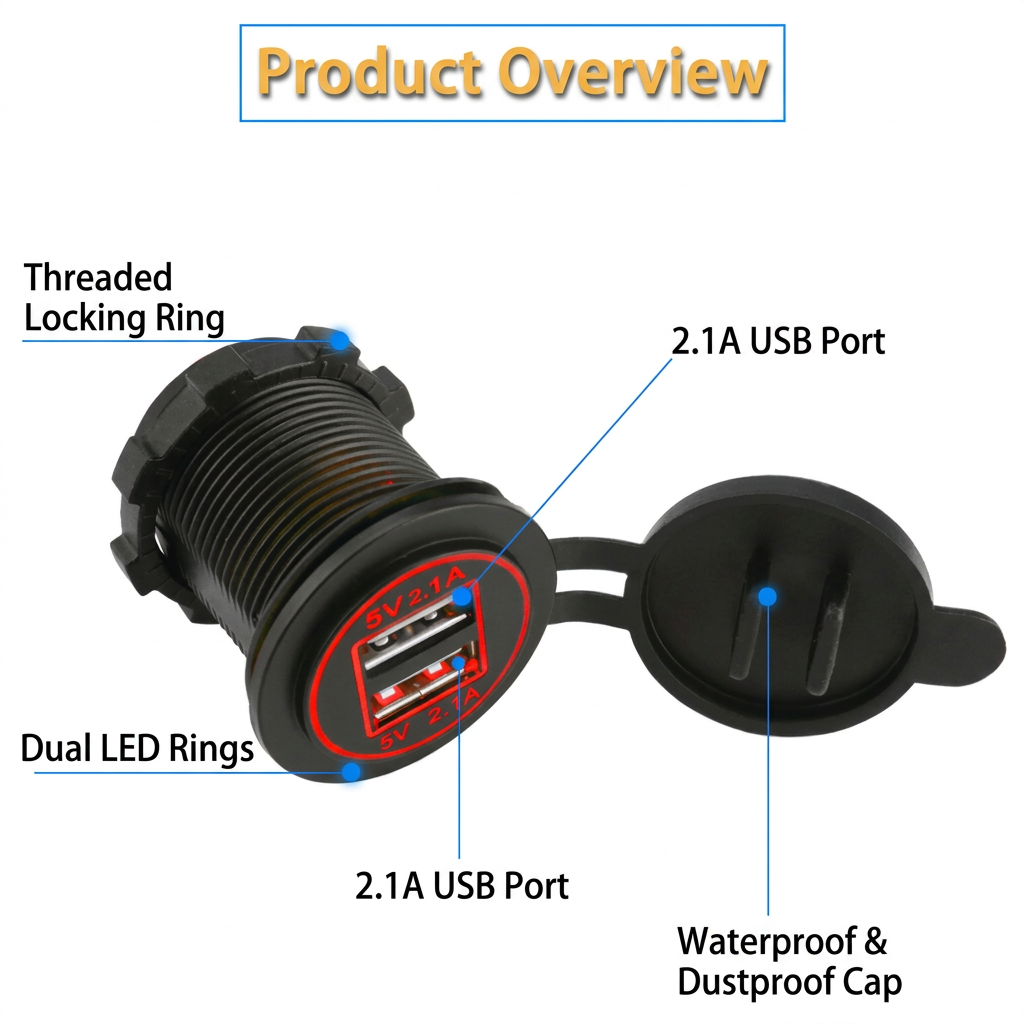

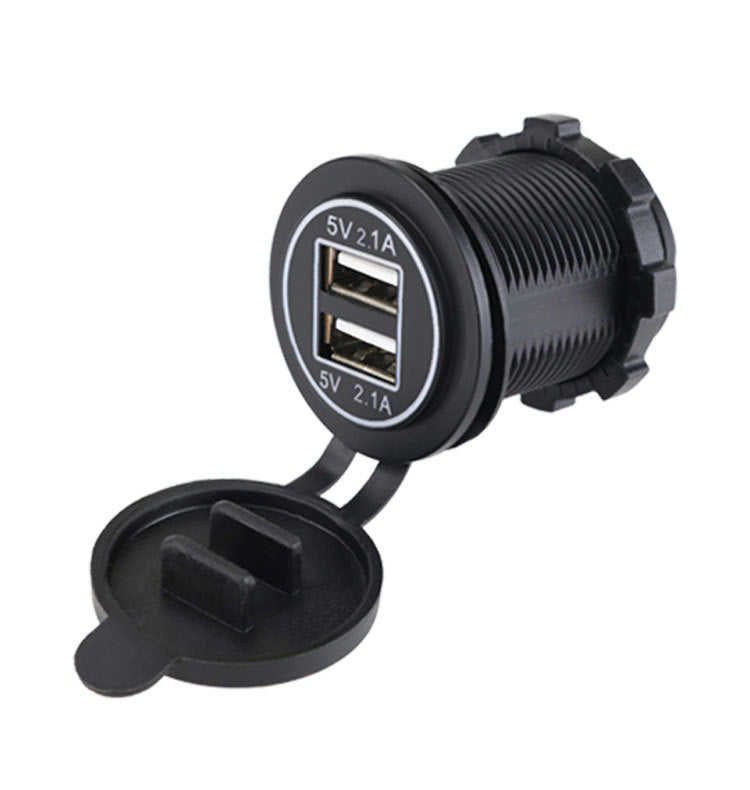

Build a dedicated charging point into your vehicle with this dual USB-A panel-mount charger. Designed for 12–24V DC systems, it offers two ports marked 5V/2.1A and a combined output current rating of 4.2A. Two illuminated LED light rings accent the charging face, while a threaded body and retaining ring secure the socket in a 29 mm panel opening.
🎯 Key Features

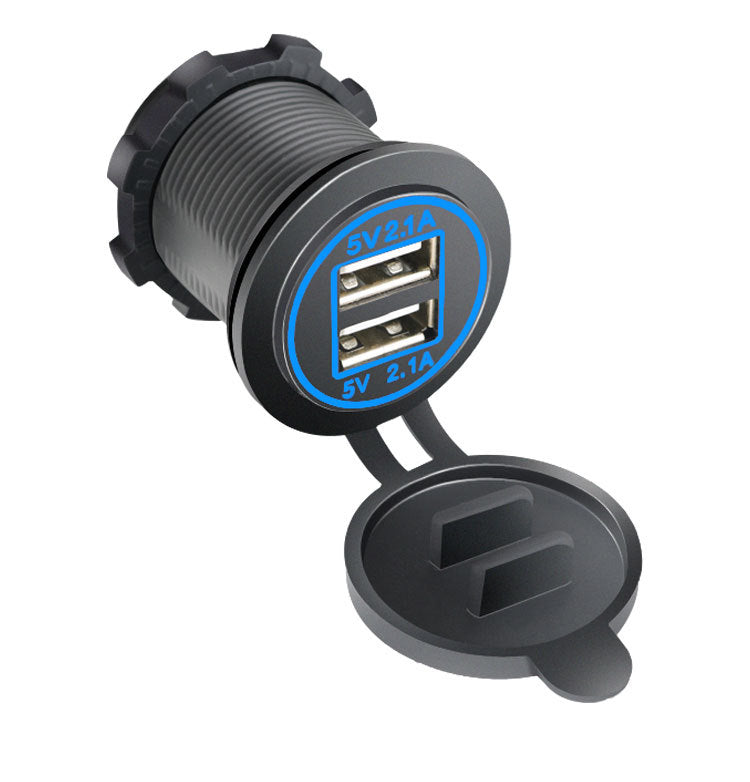

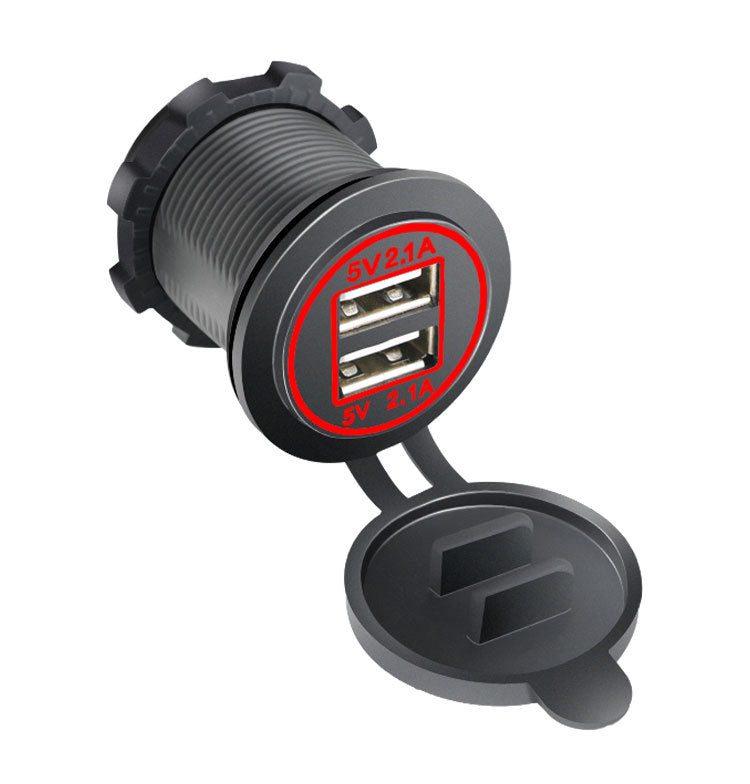

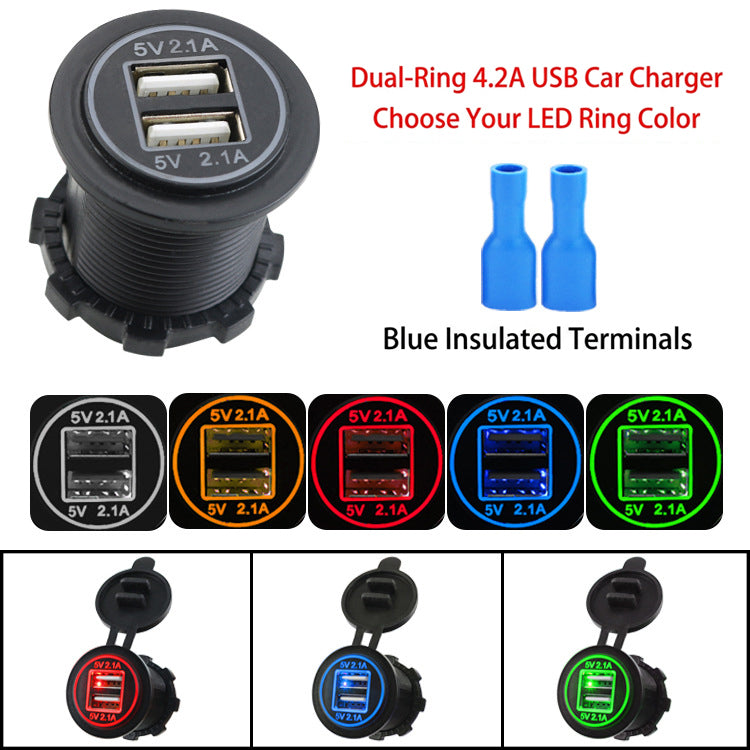

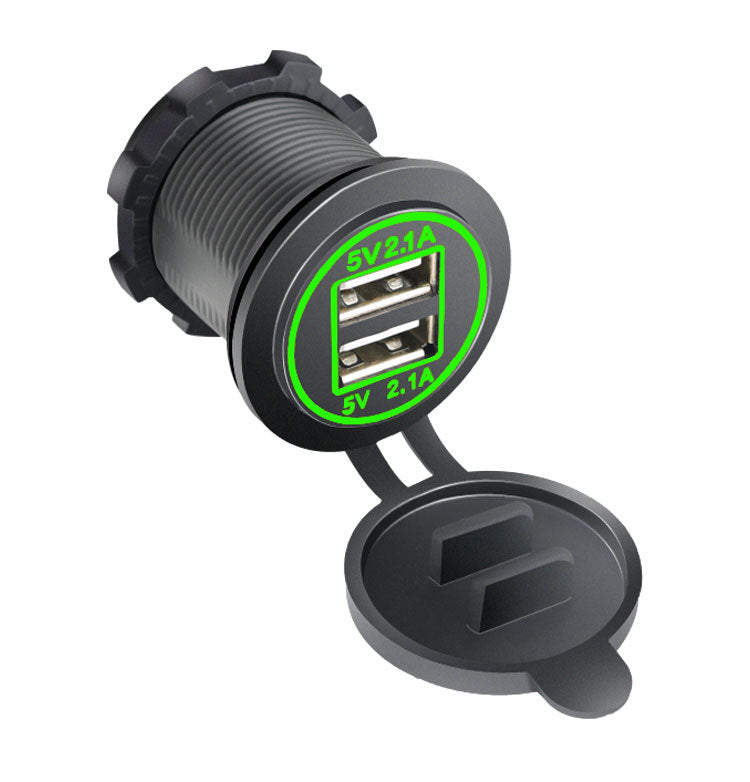

Dual illuminated LED rings: Both light rings glow in the selected color: red, green, blue, orange or white. These options refer to the LED illumination, not the black housing.

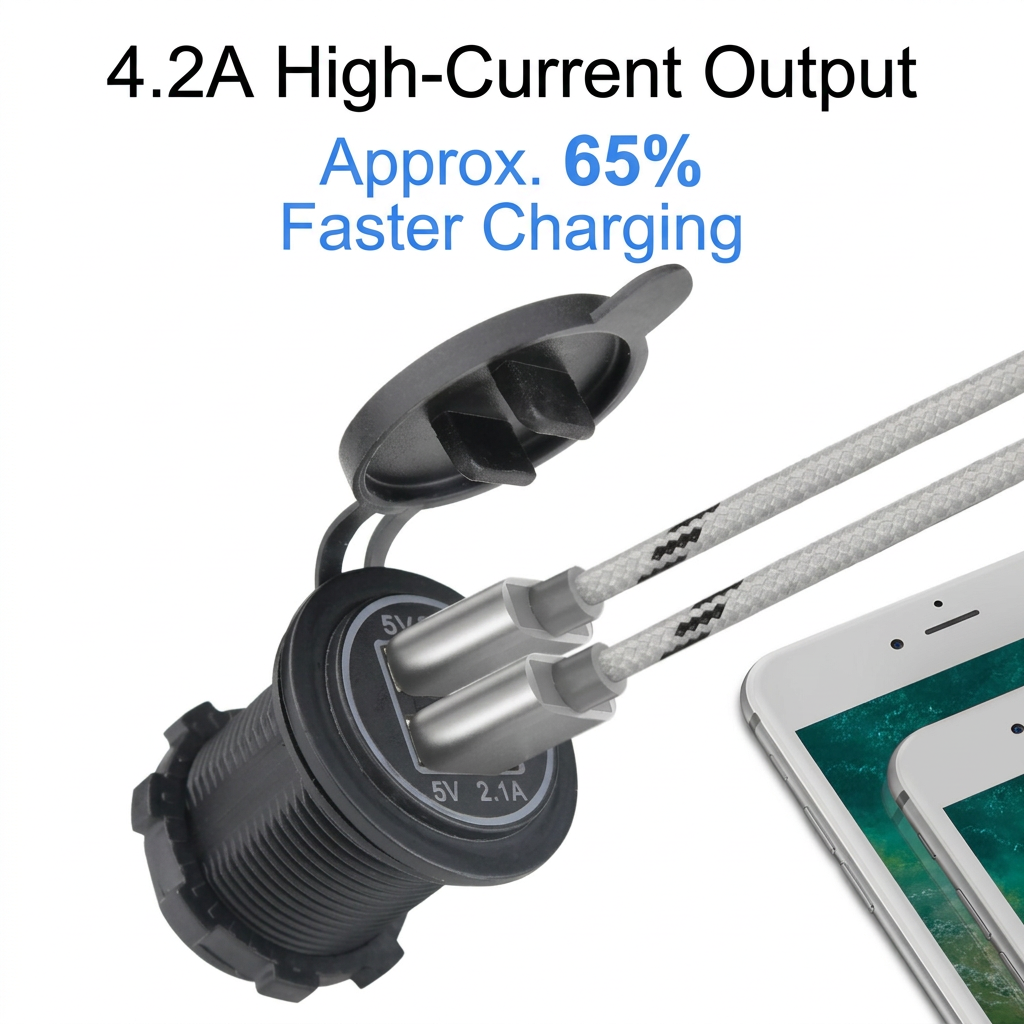

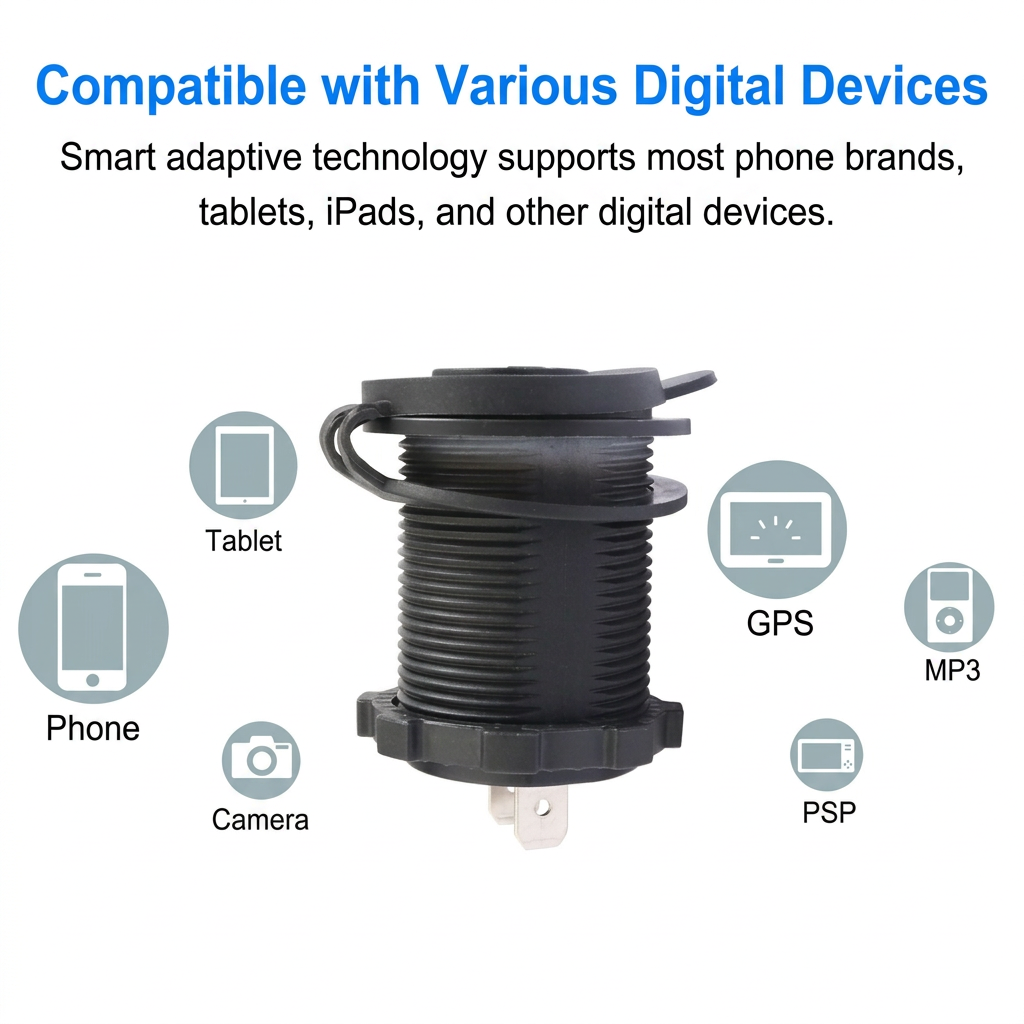

Two-device charging: Connect compatible phones, tablets, iPads and other 5V USB-powered devices with suitable USB-A charging cables. Actual charging current depends on the device and cable.
Built-in mounting: Install the round socket directly into a suitable panel rather than occupying a cigarette lighter outlet.
Tethered protective cap: Cover the ports when not in use to help keep out dust and splashes.

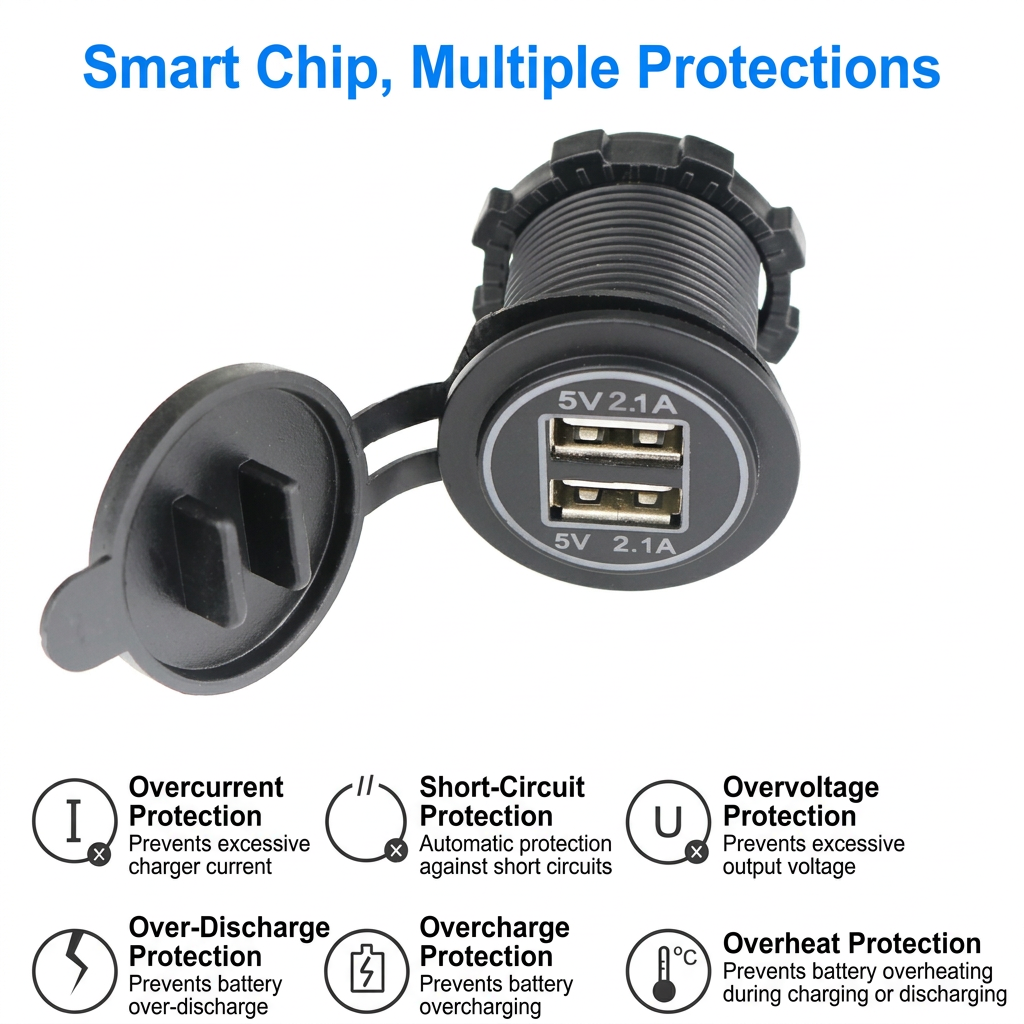

Protective construction: Flame-retardant PC housing with overcurrent, overload, short-circuit, overvoltage and overheating protection.
💼 Vehicle Applications

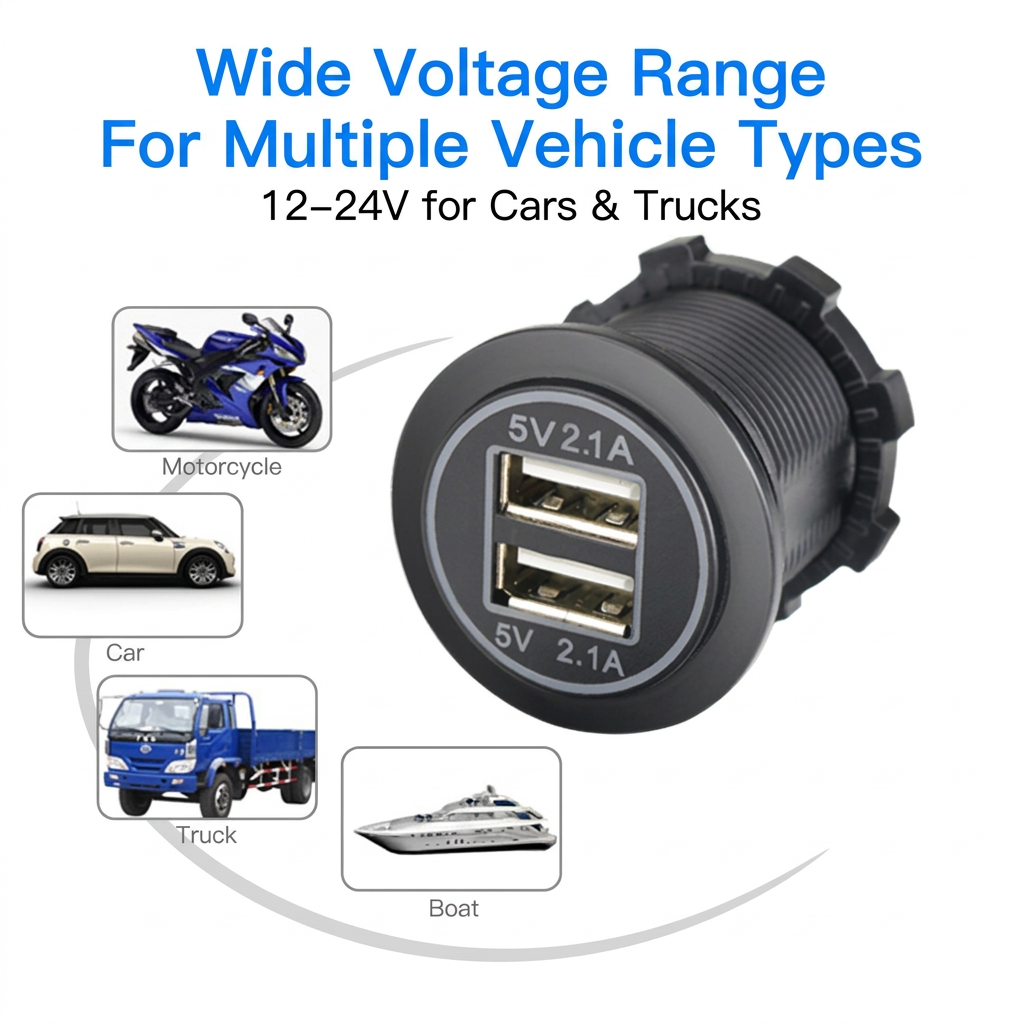

Suitable for charging-point retrofit projects in cars, motorcycles, trucks, RVs and boats with compatible 12–24V DC electrical systems.

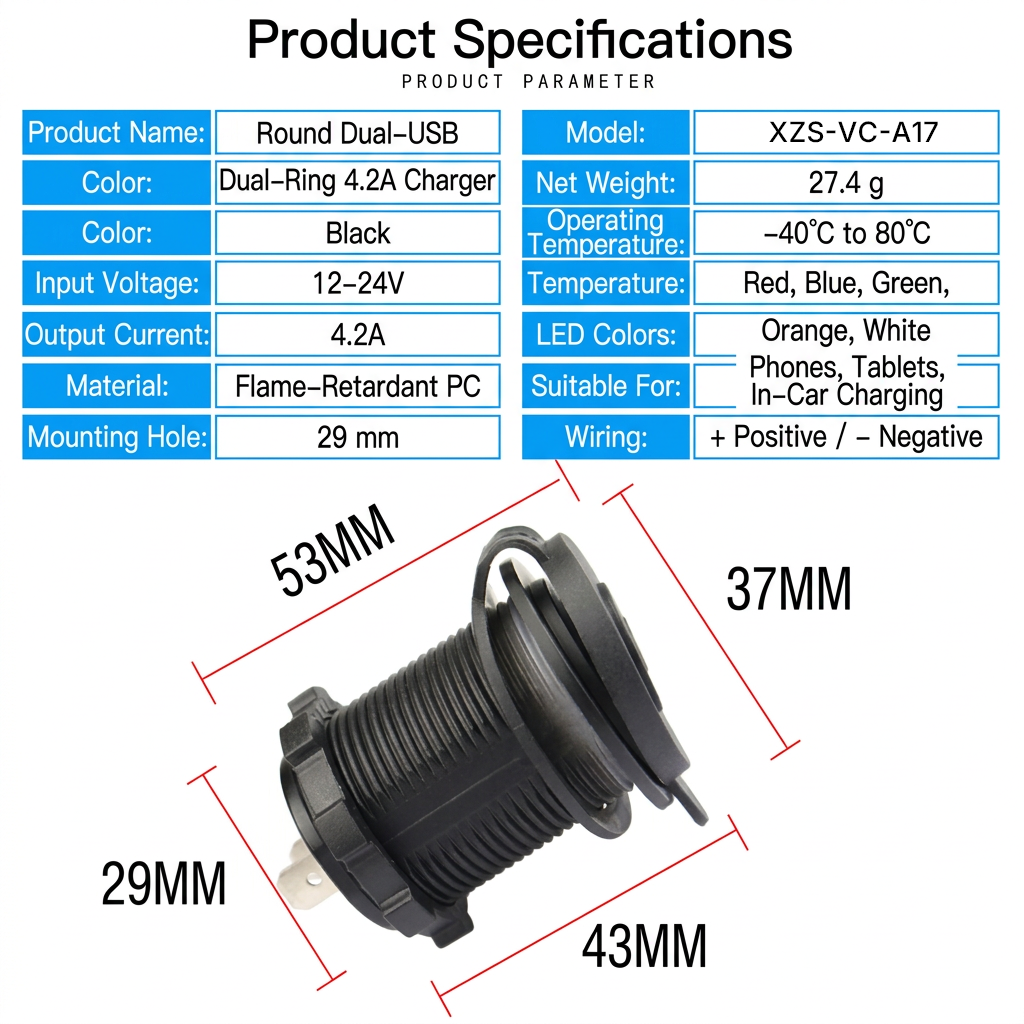

⚙️ Technical Specifications
Specification
Details
Input voltage
12–24V DC
Charging ports
2 × USB-A
Output per port
5V DC, 2.1A
Combined output current
4.2A
LED lighting
Dual illuminated rings; select Red, Green, Blue, Orange or White
Housing
Black, flame-retardant PC (polycarbonate)
Installation
Panel mount with threaded retaining ring; 29 mm cutout
Head diameter
37 mm
Overall length
Approx. 53 mm
Net weight
Approx. 27.4 g
Operating temperature
−40°C to +80°C
Wiring polarity
“+” positive; “−” negative
💡 Panel Mount Installation
Disconnect the power supply.
Prepare a 29 mm diameter hole and insert the charger from the front.
Fit the retaining ring from behind and tighten it to secure the threaded body.

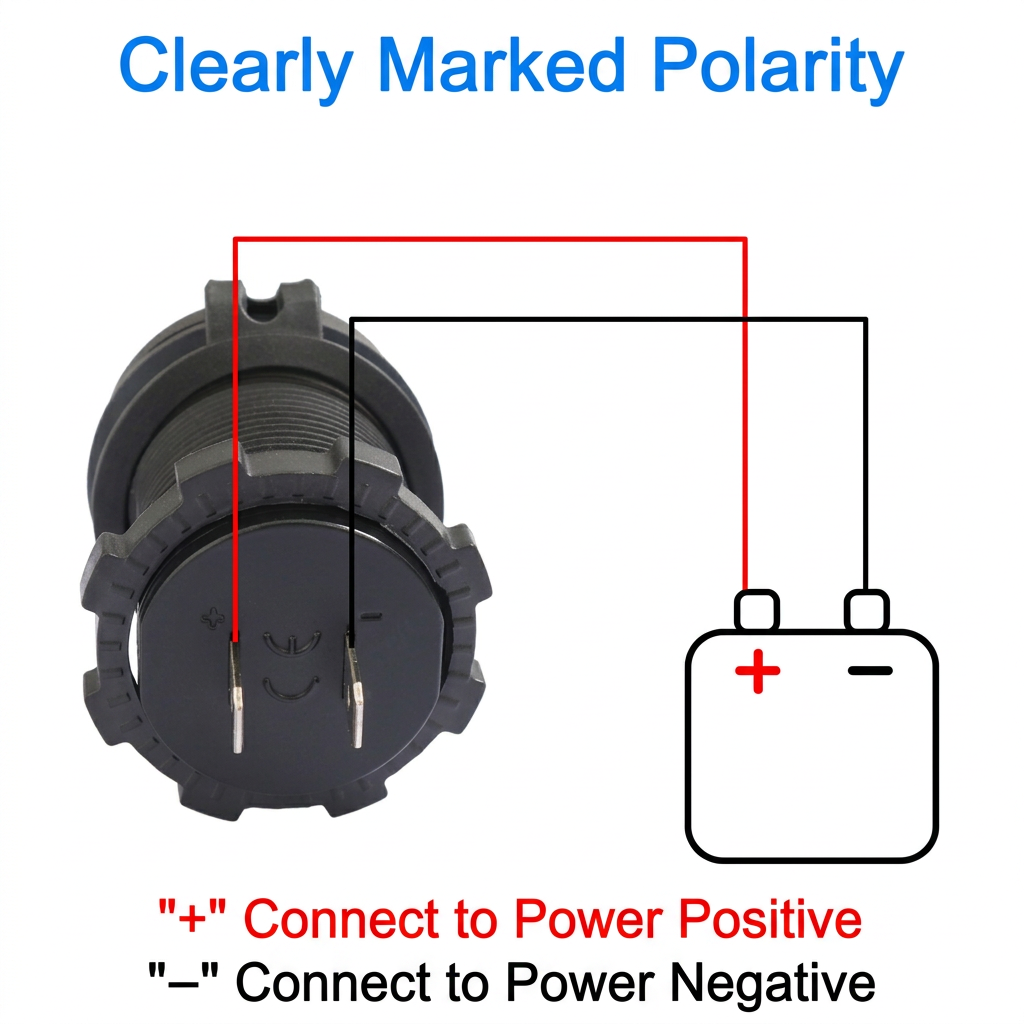

Connect “+” to positive and “−” to negative on an appropriately fused 12–24V DC circuit.
Check the wiring before restoring power. Close the cap when the ports are not in use.
❓ Compatibility and Charging
Is this a cigarette lighter plug? No. It is a hardwired panel-mount USB charging socket that requires installation.
Do the color options change the housing color? No. The housing is black on every option; the selected color identifies the two illuminated LED rings.
