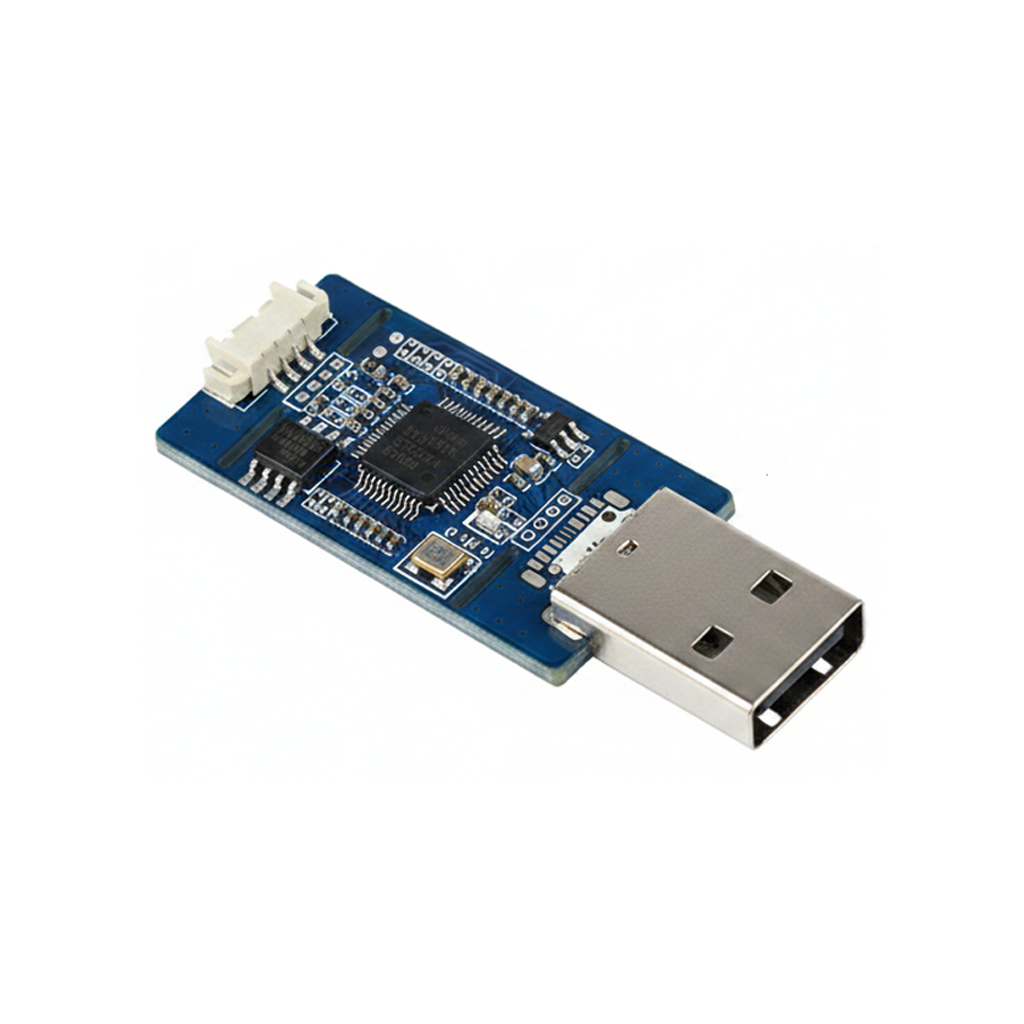

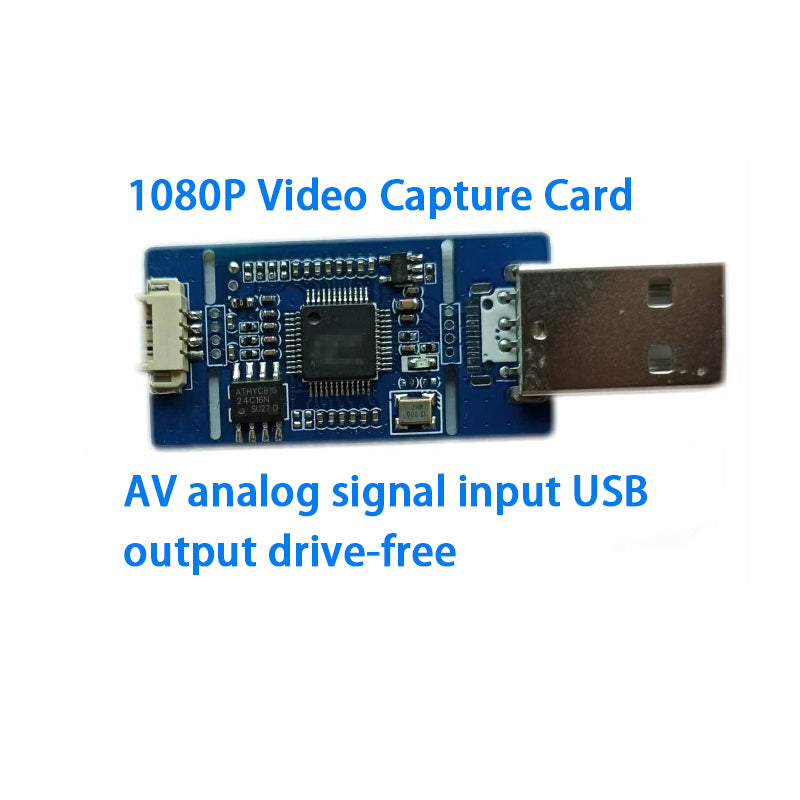

1080P Analog AV CVBS S Video to USB Capture Module
This product is an analog video to USB capture module designed to convert AV CVBS and S Video signals into a digital USB video stream. It complies with the UVC standard and is recognized by the system as a USB camera without driver installation.
This version uses a USB interface and is intended for direct connection to computers and industrial hosts. It is suitable for applications that require stable USB connectivity and system level integration.
The module supports up to 1080P video output, operates on USB 5V power, and is compatible with Windows, Android, and Linux systems. Video performance, format support, and system compatibility are optimized for embedded systems, industrial equipment, and OEM projects.
🎯 Key Features
• Analog AV CVBS and S Video input – Supports common analog video sources
• USB interface output – Direct connection to PC and industrial hosts
• UVC compliant design – Recognized as a USB camera without driver installation
• Up to 1080P video output – Suitable for recording and display applications
• MJPEG and YUY2 video formats – Compatible with mainstream capture software
• PAL and NTSC auto detection – No manual video standard switching required
• USB 5V powered – No external power supply needed
• Compact PCB structure – Ideal for embedded system integration
• OEM customization support – PCB layout and functions can be adjusted if required
⚙️ Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Analog to USB Video Capture Module |
| Video Input | AV CVBS S Video |
| Video Output | USB |
| Max Resolution | 1920 × 1080 |
| Frame Rate | 1080P 30fps, 720P 60fps |
| Video Format | MJPEG YUY2 |
| Video Standard | PAL NTSC Auto Detection |
| USB Protocol | UVC |
| Driver Requirement | None |
| Power Supply | USB 5V |
| Supported Systems | Windows Android Linux |
| PCB Size | Approx 5.4 cm × 1.9 cm |
| OEM Support | Yes |

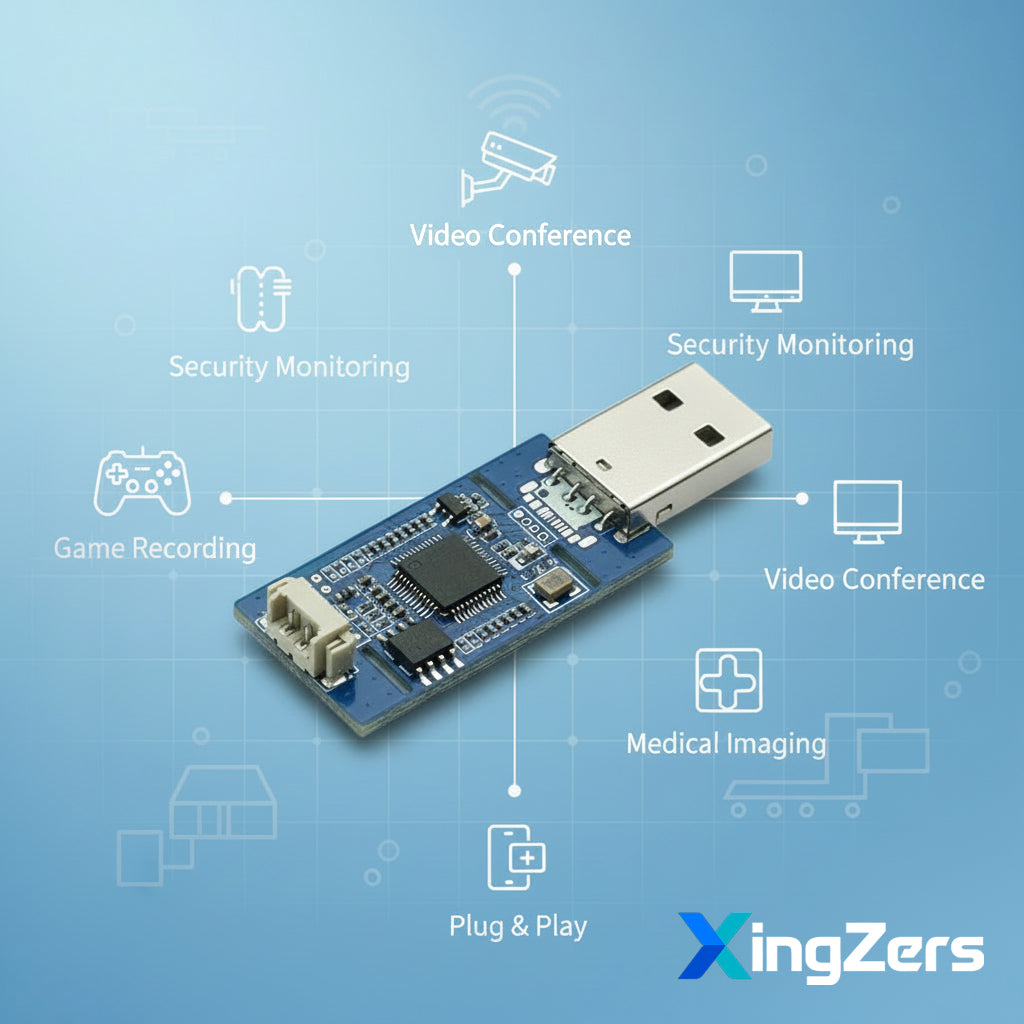

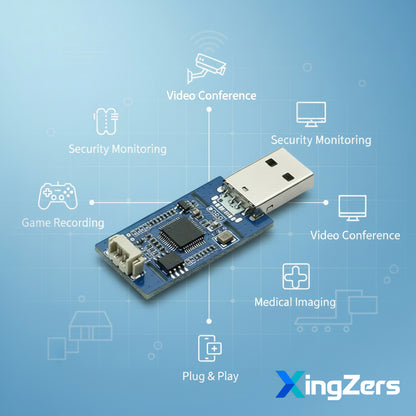

💼 Typical Applications
• Medical Imaging Systems – Ultrasound equipment and diagnostic devices with analog video output
• Industrial Inspection Systems – Industrial cameras and monitoring equipment
• Embedded Systems – Linux and Windows based platforms requiring USB video input
• Legacy AV Digitization – Converting traditional CVBS video sources to USB
• Video Recording and Monitoring – Capturing analog video on modern computer systems
• Education and Training Equipment – Teaching systems and demonstration setups
