4-in-1 AHD CVBS CVI TVI to USB 3.0 Video Capture Card 1080P Driver-Free

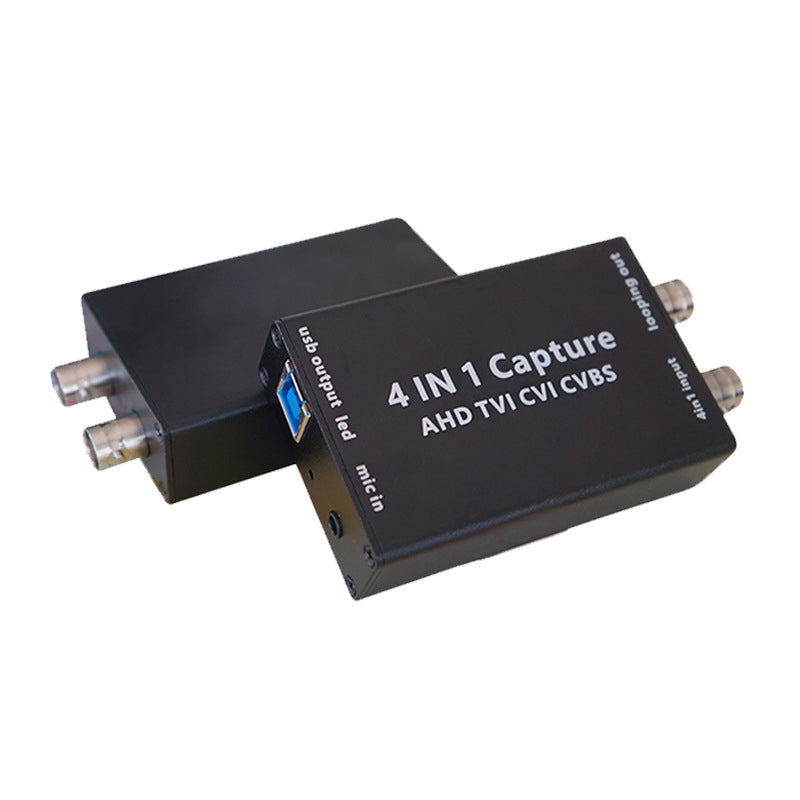

XingZers 4-in-1 AHD CVBS CVI TVI to USB 3.0 Video Capture Card — 1080P Driver-Free Loop-Out, Compatible with OBS / Windows / Linux / Android

Tired of losing valuable footage from your analog cameras? The XingZers 4-in-1 Capture Card instantly converts AHD, CVBS, TVI, and CVI signals into crystal-clear 1080P digital video — no drivers, no hassle. Just plug it in, open OBS or any capture software, and you're live. Whether you're monitoring security cameras, recording medical equipment, or streaming from a set-top box, this compact USB 3.0 device delivers professional-grade capture in the palm of your hand.

🎯 Key Features

• 4-in-1 Signal Input: Supports AHD, CVBS, TVI, and CVI camera signals via BNC connector
• USB 3.0 Output: High-speed data transfer to PC, laptop, or smartphone (via OTG adapter)
• 1080P Full HD Capture: Real-time capture at 1080P@30fps; also supports 720P@60fps and multiple other resolutions
• Plug & Play — No Driver Required: UVC/UAC compliant, works instantly on Windows, Linux, and Android

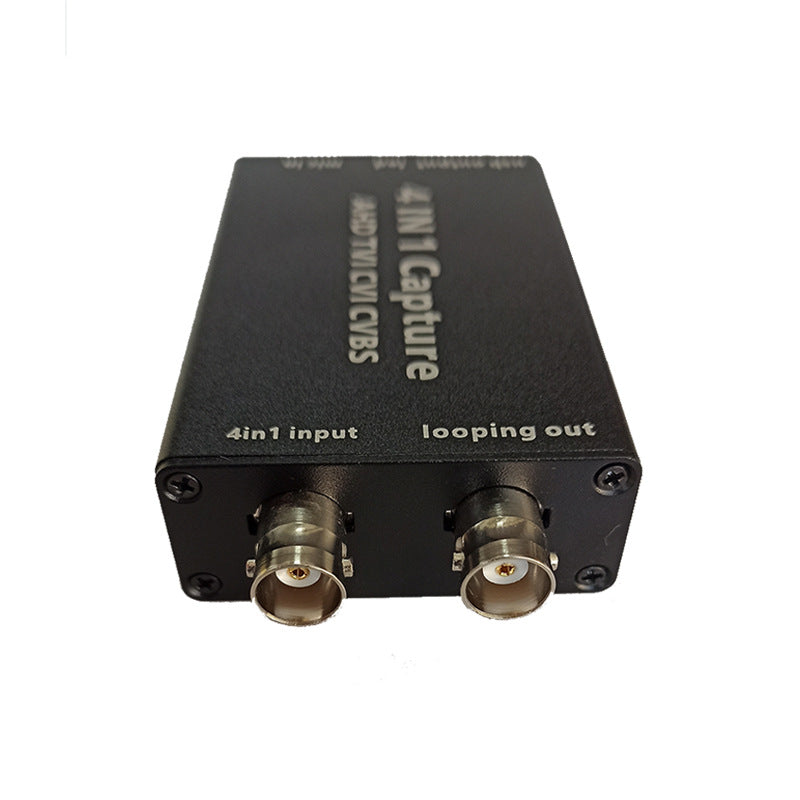

• Lossless Loop-Out: BNC loop-out port allows simultaneous signal monitoring without quality loss
• Independent Audio Input: Built-in MIC IN port for synchronized audio capture
• No External Power Needed: USB bus-powered, ultra-low power consumption (<3W)
• OBS / POTPLAYER / VLC Compatible: Works with all major capture software

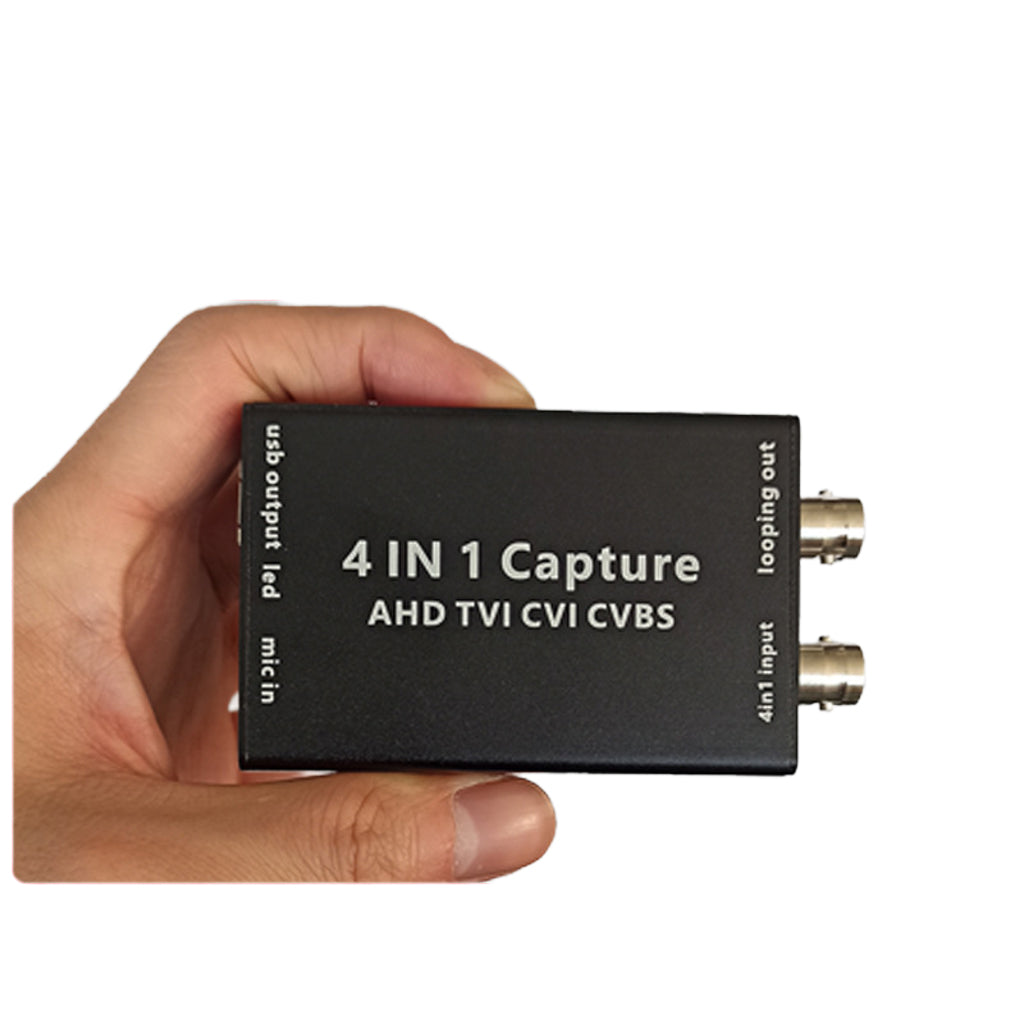

• Compact & Portable: 87×51×21mm, 100g — fits in any bag
• OEM / Custom Available: Hardware and software independently developed; OEM and bulk orders welcome

💼 Professional Applications

• 🔒 Security & Surveillance: Capture and record footage from analog CCTV cameras
• 🏥 Medical Imaging: Digitize video output from medical devices and endoscopes
• 🎓 Education & Conferencing: Stream or record presentations and video conferences
• 🎣 Fishing & Outdoor: Connect underwater cameras for real-time viewing and recording
• 📺 Set-Top Box / Industrial Camera: Capture any BNC-output video source

⚙️ Technical Specifications

💡 How to Use

1. Connect your signal source (camera, DVR, set-top box, etc.) to the 4IN1 INPUT BNC port. If loop-out is needed, connect a monitor to the LOOPING OUT port.

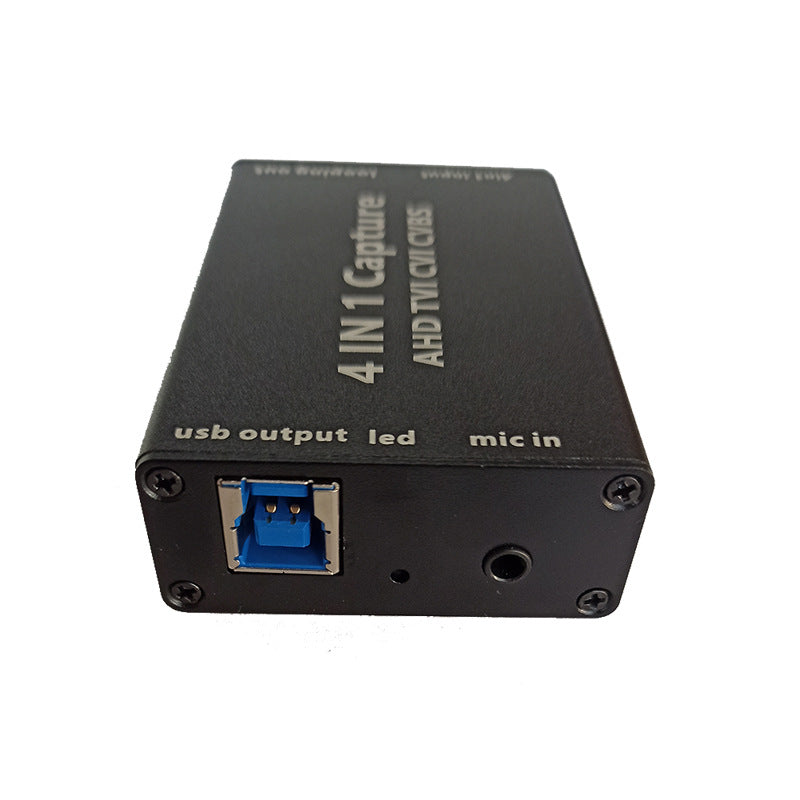

2. Connect the USB OUTPUT to your PC via USB cable, or to your smartphone using an OTG adapter (no driver needed).
3. If audio input is required, connect your audio source to the MIC IN port.
4. Open your capture software (e.g., OBS), select device AFN_CAPVIDEO and activate it. The LED indicator will flash red to confirm successful signal capture.

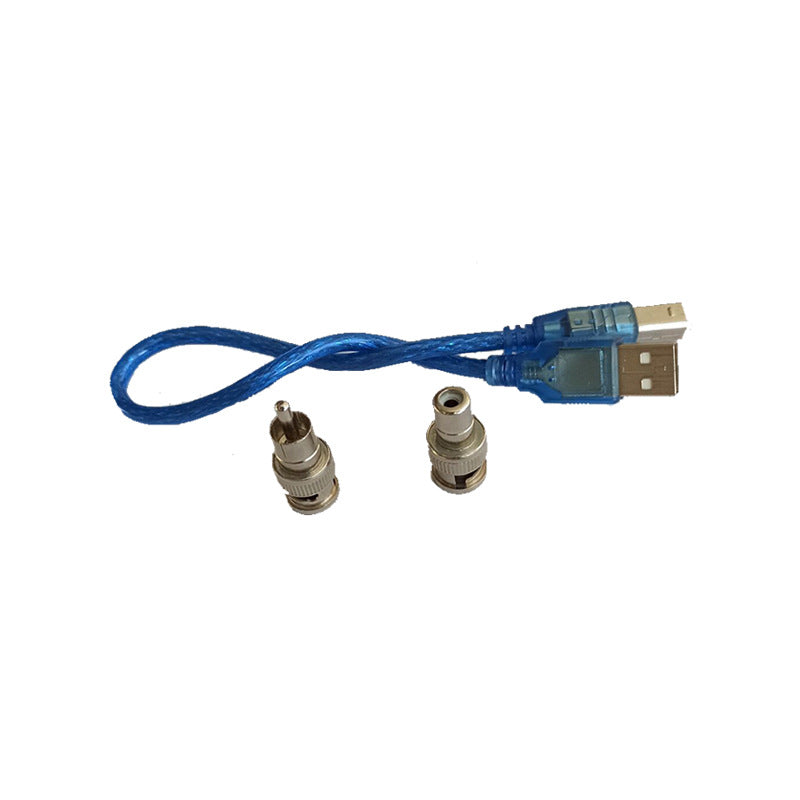

📦 Package Contents

• 1× 4-in-1 Video Capture Card (XZSCC-A2U-4IN1)
• 1× USB Cable
• 1× BNC to RCA Female Adapter
• 1× BNC to RCA Male Adapter

❓ FAQ

Q: Do I need to install any drivers?
A: No. This device is fully plug-and-play. Simply connect it via USB and your OS will recognize it automatically.

Q: Is it normal for the device to get warm during use?
A: Yes, slight warmth during operation is completely normal. The circuit board is designed for wide temperature tolerance and long-term use will not affect device lifespan.

Q: Can I request custom hardware or software?
A: Yes. Both hardware and software are independently developed by our team. We welcome OEM and custom development requests — please contact us for details.

🛠️ Custom Solutions Available

We specialize in self-developed video capture hardware and software. Whether you need custom firmware, branding, or hardware modifications, our engineering team is ready to support your project. Bulk pricing available.
