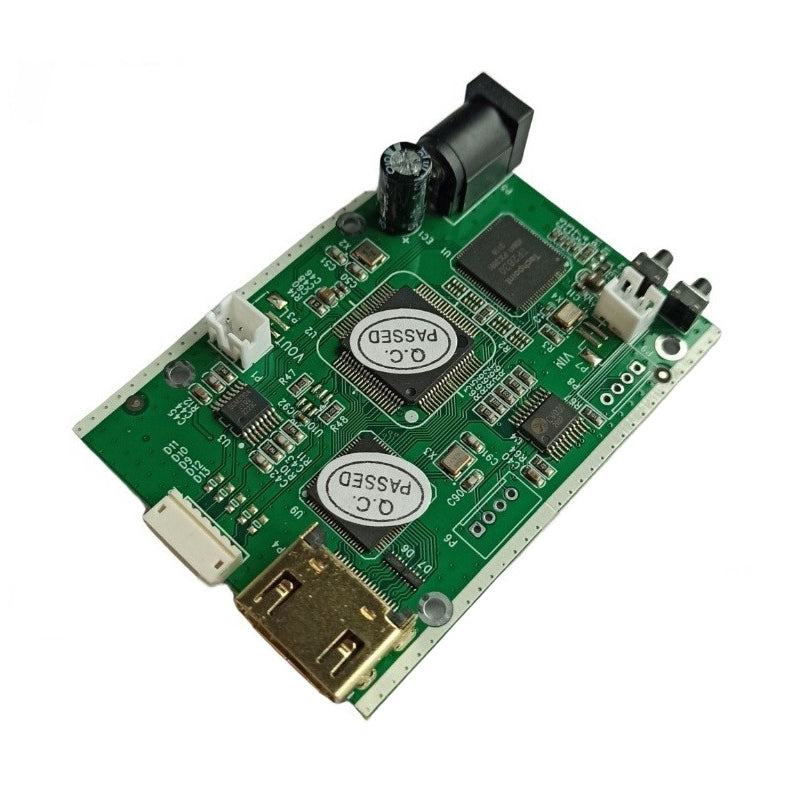

4-in-1 AHD TVI CVI CVBS to HDMI VGA Converter Module Board 1080P OEM PCB for CCTV Integration

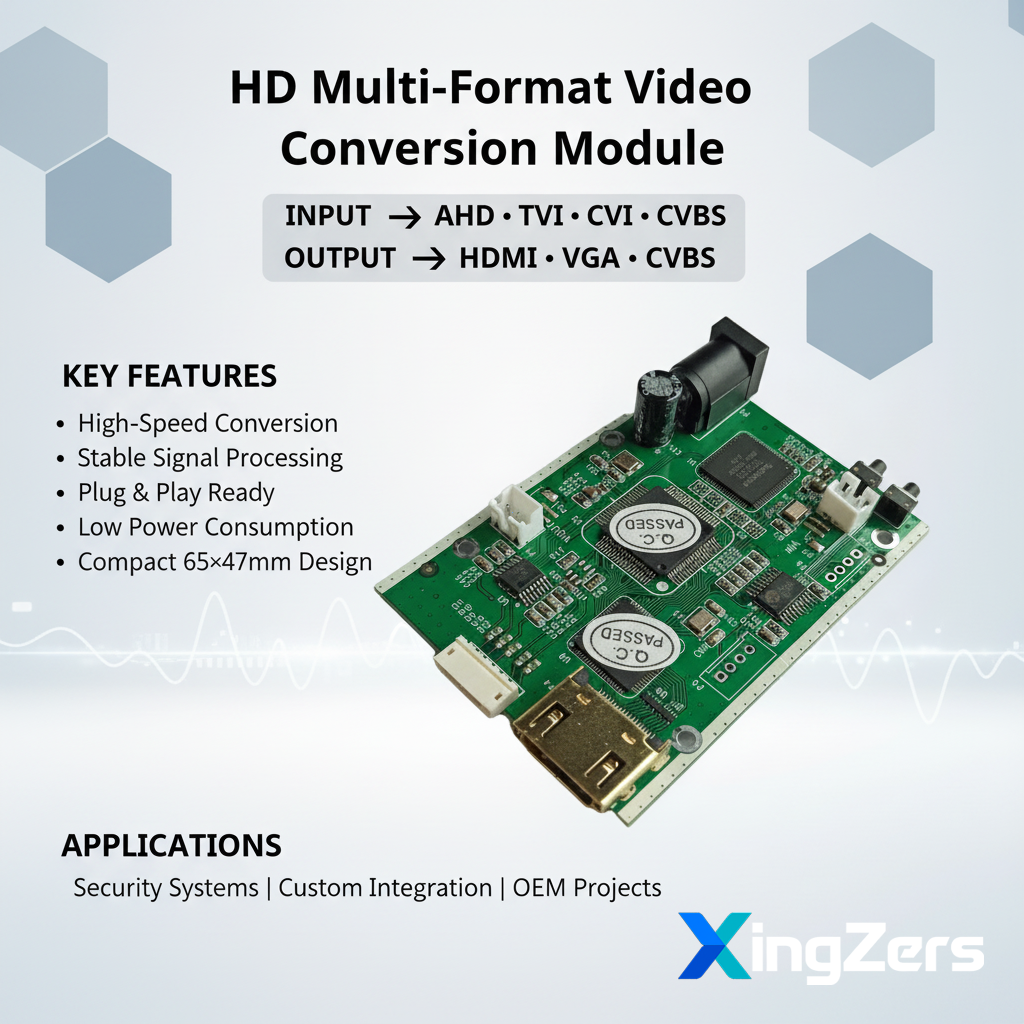

Professional 4-in-1 HD Video Signal Converter Module

This professional-grade video converter module is designed for seamless integration into your surveillance systems, video processing equipment, or custom AV solutions. The compact PCB board transforms AHD/TVI/CVI/CVBS signals into HDMI/VGA/CVBS outputs with automatic signal recognition and perfect compatibility across multiple HD formats.

Ideal for OEM manufacturers, system integrators, and product developers who need reliable video conversion functionality embedded directly into their products.

🎯 Why Choose This Module?

• Compact Design – Ultra-compact 66×48mm PCB board fits easily into your product enclosures
• Easy Integration – Simple terminal connections for quick incorporation into your designs
• Flexible Power – Wide DC 5-24V input adapts to various system power supplies
• OEM Customization – Custom board sizes available to meet your specific requirements
• Cost-Effective – Add professional video conversion functionality efficiently

🎯 Key Features

• Universal Compatibility – Automatically recognizes and converts AHD, TVI, CVI, and CVBS input signals
• Multiple Outputs – Supports simultaneous HDMI, VGA, and CVBS outputs
• Full HD Support – Compatible with 1080P, 960P, 720P, and 480P signals
• Smart Controls – Built-in buttons for output switching and resolution/format selection
• Low Power – Energy-efficient operation at ≤2W

⚙️ Technical Specifications

💼 Applications

Perfect for security surveillance systems, video monitoring equipment, CCTV upgrades, DVR/NVR systems, video matrix switchers, and custom AV hardware requiring flexible video signal conversion.

💡 Integration Guide

Step 1 – Power Connection: Connect DC 5-24V power supply to the DC port. Red LED indicates successful power-on.
Step 2 – Signal Connection: Connect input video signal to V-IN port and output to V-OUT port.
Step 3 – Output Switching: Press Button A to switch between HDMI/VGA/CVBS outputs (HDMI is default).
Step 4 – Resolution/Format Control: Press Button B to toggle HDMI resolution (1080P/720P) or CVBS format (PAL/NTSC).

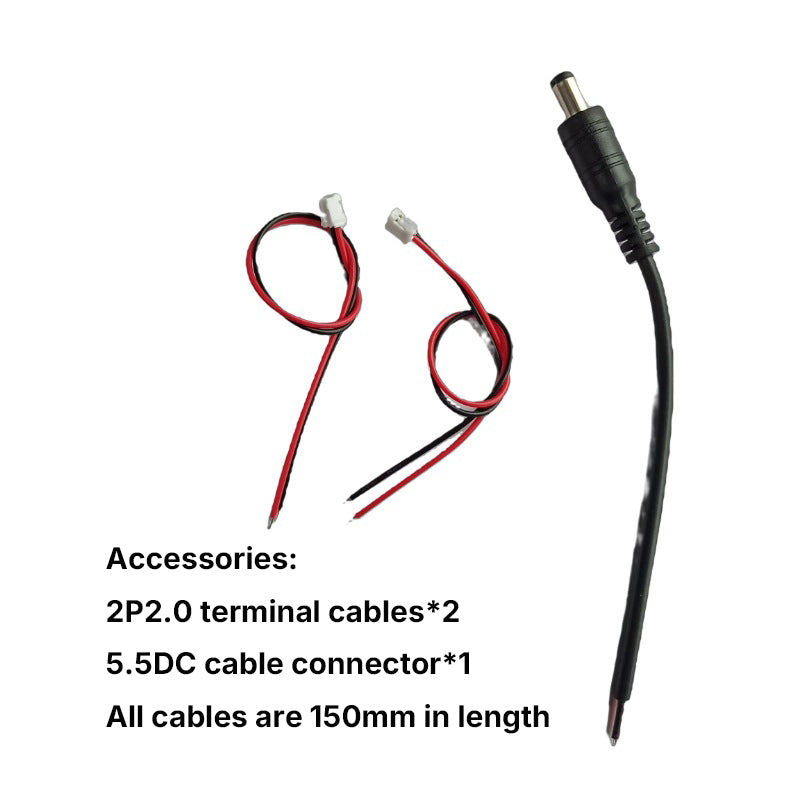

📦 Package Includes

• 1× Video Converter Module Board
• 2× 2P 2.0 Terminal Cables (150mm)
• 1× 5.5mm DC Power Cable (150mm)

🛠️ OEM Services

Custom dimensions and specifications available for large-volume orders. Contact us for bulk pricing and customization details.
