XingZers AHD to USB Video Capture Card 1080P 720P Driver-Free UVC Module for PC Phone Tablet

Product Description

Professional AHD to USB video capture module that converts analog AHD camera signals into digital USB output. This plug-and-play device supports both 720P and 1080P resolutions with automatic PAL/NTSC detection, making it perfect for security monitoring, medical equipment, video conferencing, and custom integration projects.

Key Features

Driver-Free UVC/UAC Compliance
Instantly recognized by your device without installing any drivers. Works with most UVC capture software including OBS, PotPlayer, AMCap, VLC, and native camera apps.

Dual Resolution Support
Automatically detects and supports AHD 720P and 1080P camera signals with seamless switching between PAL and NTSC formats.

Universal Compatibility
Compatible with Windows, Linux, macOS, and Android systems. Works with computers, laptops, phones, and tablets (Note: iOS devices not supported).

USB & Type-C Options
Available in standard USB or Type-C connector versions. Type-C model can connect directly to mobile devices via OTG cable or Type-C to Type-C cable.

Integrated Power Supply
Module is powered directly through USB connection and provides 5V output to power AHD cameras - no external power adapter needed.

Audio & Video Capture
Supports both video and audio input with 48KHz stereo audio output for complete multimedia capture.

Compact Modular Design

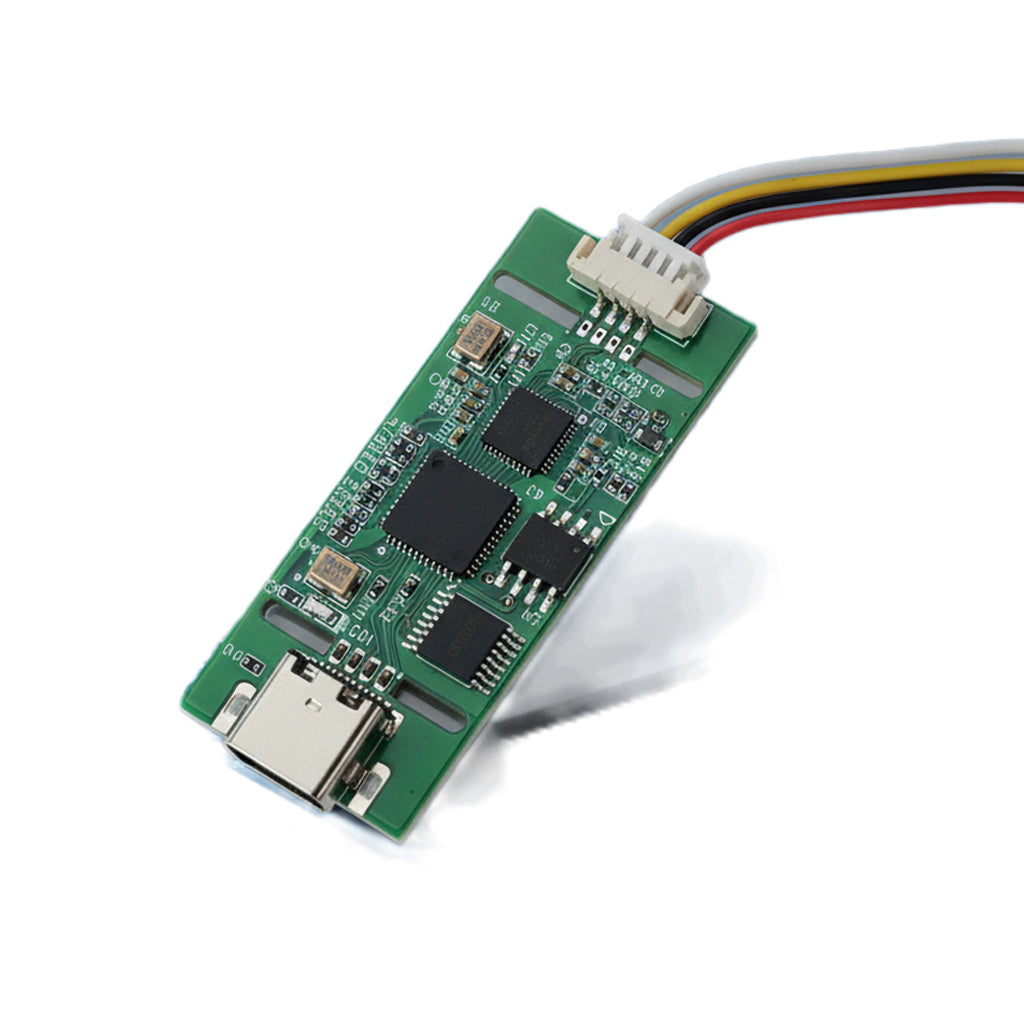

Ultra-compact PCB module measuring just 1.9cm × 4.5cm (or 1.9cm × 3cm with connectors removed). Perfect for embedded integration and OEM projects.

Technical Specifications

Common Applications

• Security & Surveillance - Capture and record footage from AHD security cameras
• Medical Equipment - Integrate video capture into medical imaging systems
• Video Conferencing - Connect AHD cameras for corporate meetings and remote collaboration
• Education & Training - Record lectures and demonstrations from AHD camera sources
• Live Streaming - Stream content from AHD cameras to platforms like YouTube, Twitch, Facebook
• Fishing & Underwater Exploration - Capture underwater camera footage on mobile devices
• Custom Integration Projects - Embed into arcade machines, kiosks, and specialized equipment

Easy Setup Instructions

1. Connect your AHD camera to the module's 4-pin connector (Left to Right: 5V Out, GND, Video In, Audio In)
2. Connect the module's USB or Type-C port to your computer, phone, or tablet
3. Open your preferred capture software - the device will be automatically recognized
4. Start capturing or streaming immediately

What's Included

• 1× AHD to USB Video Capture Module
• 1× Pre-wired 1.25mm 4-pin connector cable
• User manual

Note: The 4-pin connector section can be removed if direct wire soldering is preferred for permanent installations.

OEM & Bulk Orders

Factory direct sales with support for bulk orders and customization. Contact us for volume pricing and custom specifications.
