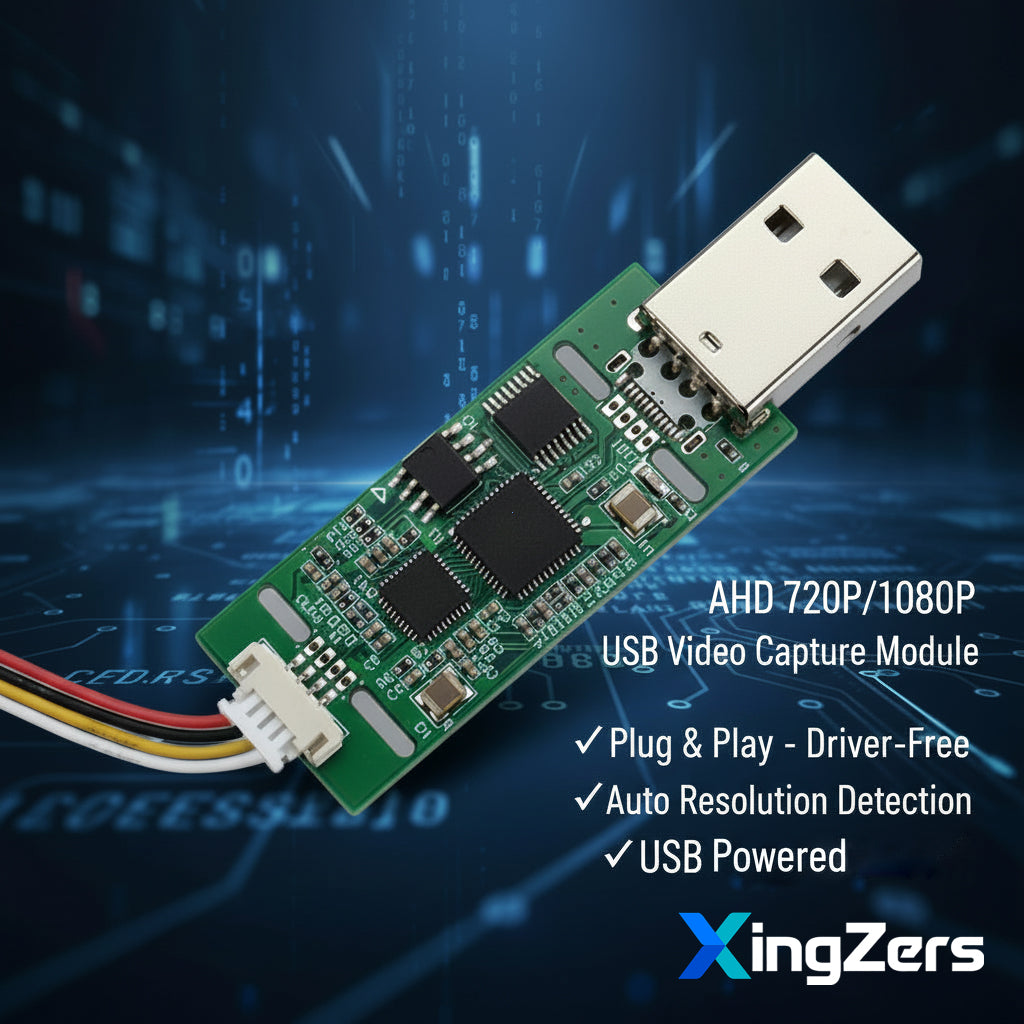

XingZers AHD to USB Video Capture Card 1080P 720P - Driver-Free UVC Module for Security Camera, PC, Android - Analog to Digital Converter

Professional AHD to USB Video Capture Module - 2024 New Model

Transform your analog AHD security cameras into digital USB video with this plug-and-play capture card. Supporting both 720P and 1080P resolutions with automatic detection, this driver-free UVC/UAC compliant module works seamlessly with PCs, laptops, and Android devices for security monitoring, video conferencing, live streaming, and custom integration projects.

Key Features

✓ True Plug & Play - Zero Driver Installation
UVC/UAC standard compliant means instant recognition by your device. Works with popular software including OBS Studio, PotPlayer, AMCap, VLC, native camera apps, video conferencing platforms, and live streaming services right out of the box.

✓ Automatic Resolution Detection
Intelligently detects and switches between AHD 720P and 1080P camera signals. Automatically compatible with both PAL and NTSC formats - no manual configuration needed.

✓ Wide System Compatibility
Supports Windows, Linux, macOS, and Android operating systems. Perfect for desktops, laptops, tablets, and Android phones. Note: iOS devices not supported.

✓ USB Type-C Interface
USB Type-C connector for modern devices. Module is bus-powered via USB - no external power adapter required. Built-in 5V output powers your AHD camera directly from the module.

✓ Synchronized Audio & Video Capture
Captures both video and audio inputs simultaneously with 48KHz stereo audio output for complete multimedia recording and streaming.

✓ Ultra-Compact Modular Design

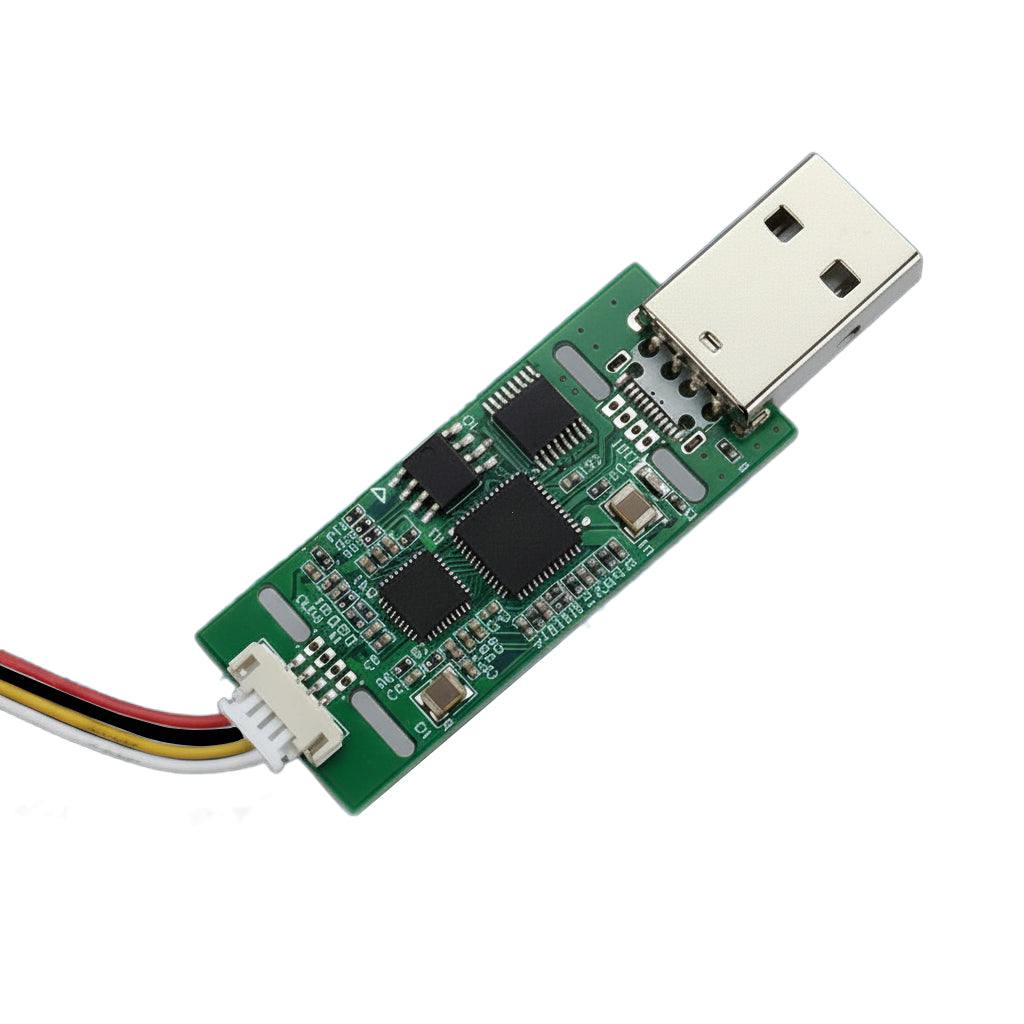

Measuring just 1.9cm × 4.5cm and weighing only 10g, this tiny module is perfect for embedded applications and OEM integration. The 1.25mm 4-pin connector section can be removed for direct wire soldering in permanent installations.

Technical Specifications

Connection Interface Details

Input: 1.25mm 4-Pin Connector (Pre-wired cable included)
Pin configuration from left to right:
• Pin 1: 5V Output (powers AHD camera)
• Pin 2: GND (Ground)
• Pin 3: Video Input
• Pin 4: Audio Input

Note: The connector section can be snapped off if direct wire soldering is preferred for permanent installations.

Common Applications

• Security & Surveillance - Connect AHD security cameras to computers or Android devices for live monitoring and recording
• Medical Equipment - Capture video from medical imaging devices and endoscopes
• Video Conferencing - Use AHD cameras for remote meetings and collaboration
• Education & Training - Record lectures, demonstrations, and training sessions
• Live Streaming - Stream to YouTube, Twitch, Facebook Live, and other platforms
• Underwater Exploration - Display fishing camera footage on phones and tablets
• Custom Integration - Embed into arcade machines, kiosks, industrial equipment, and DIY projects

Quick Setup Guide

Get started in 3 simple steps:

Step 1: Connect your AHD camera to the module's 4-pin connector

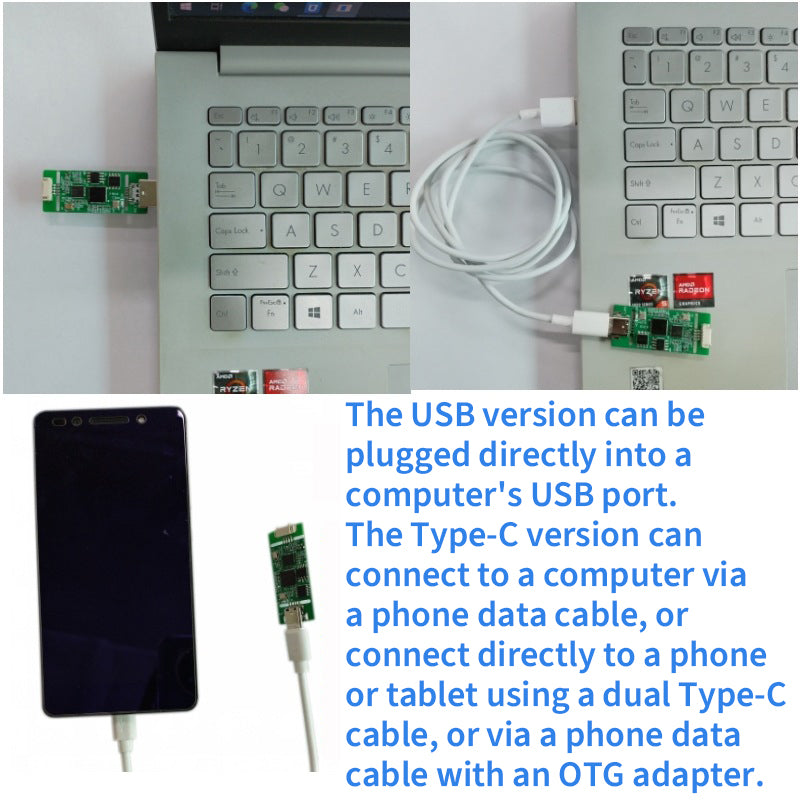

Step 2: Plug the module's USB Type-C connector into your device
Step 3: Open your capture software - automatically recognized and ready to use

No driver installation, no configuration needed. Just plug in and start capturing!

What's in the Box

• 1× AHD to USB Video Capture Module
• 1× Pre-wired 1.25mm 4-pin connector cable
• 1× User Manual

OEM & Bulk Orders Welcome

Factory direct sales with support for bulk orders and custom specifications. Contact us for volume pricing, white-label options, and customization services.

Important Notes

• Requires an AHD camera as the video source (camera not included)
• iOS devices (iPhone/iPad) are not supported
• Android devices require OTG support
• Maximum resolution depends on the connected AHD camera capabilities
