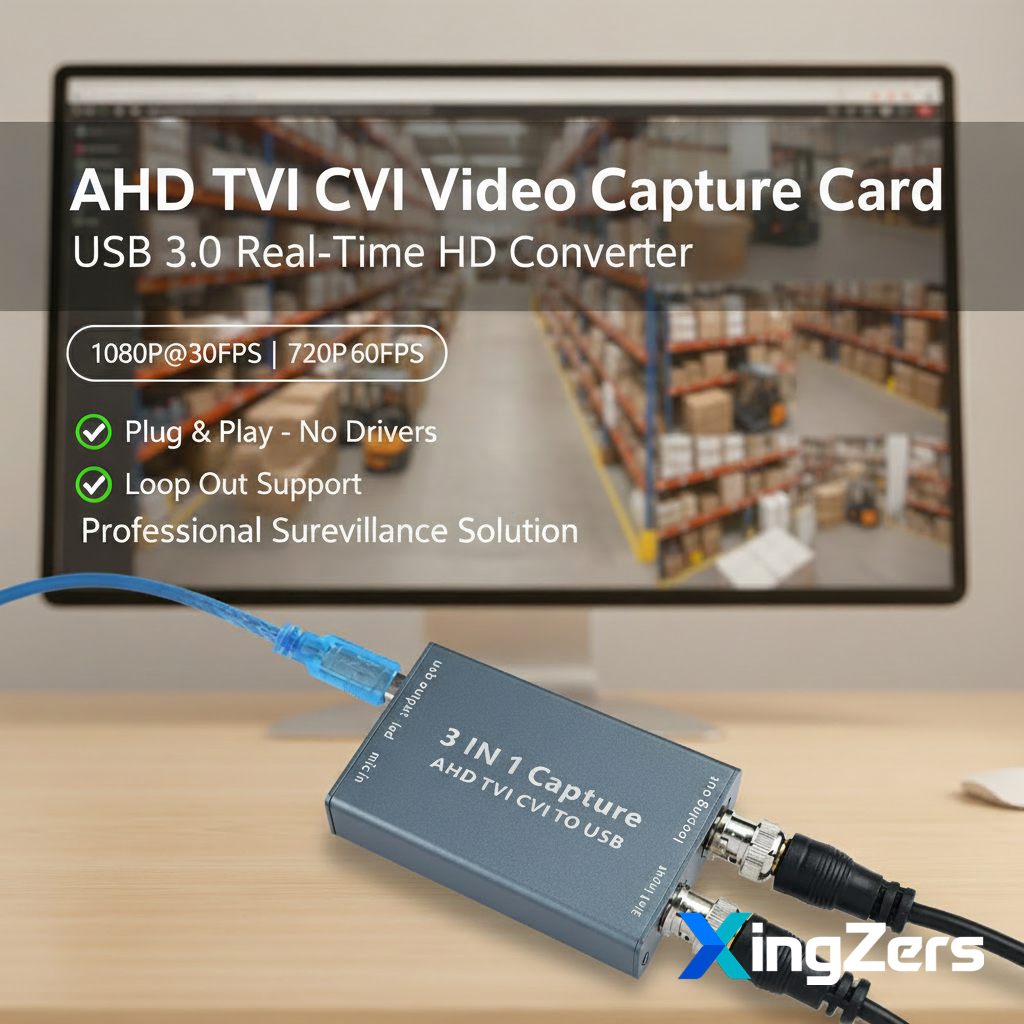

Professional 1080P Multi-Signal Video Capture Card
Transform your AHD, TVI, or CVI camera signals into USB output with this compact, plug-and-play capture card. Perfect for security monitoring, medical equipment video capture, video conferencing, education, and fishing detection applications.
🎯 Key Features
• 3-in-1 Signal Support – Compatible with AHD, TVI, and CVI camera inputs (up to 1080P 200W)
• True Plug & Play – No driver installation required, works instantly with computers, laptops, and smartphones (with OTG adapter)
• Crystal Clear Quality – Capture up to 1080P at 30fps or 720P at 60fps for smooth, high-definition video
• Lossless Loop Out – Monitor your video feed while recording without quality degradation
• Independent Audio Input – Built-in microphone input for synchronized audio capture
• No External Power Needed – USB-powered design for maximum portability
• Ultra-Compact Design – Lightweight and portable, perfect for travel and on-the-go use
• Universal Compatibility – Works with all operating systems and popular capture software (OBS, PotPlayer, AMCap, VLC)
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Input/Output Interface | BNC Input, BNC Loop Out |
| Input Signal | AHD, TVI, CVI (Max 1080P 200W) |
| Output Interface | USB 3.0 |
| Operating System Support | Windows, Linux, Android, macOS |
| Recommended Capture Software | OBS, PotPlayer (Windows) |
| Audio/Video Capture | Standard UVC/UAC |
| Driver Required | No - Plug and Play |
| Power Supply | USB Bus-Powered (No External Power Required) |
| Power Consumption | <3W |
| Supported Resolutions | 1920×1080, 1600×1200, 1360×768, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 720×480, 720×576, 640×480 |
| Frame Rate | 5-60Hz Adjustable |
| Operating Temperature | -20°C to 65°C |
| Operating Humidity | 5%-90% |
| Product Dimensions | 87mm × 51mm × 21mm (connector protrudes 10mm) |
| Product Weight | 90g |
💼 Professional Applications
• Security & Surveillance Systems
• Medical Equipment Video Recording
• Corporate Video Conferencing
• Educational Video Capture
• Underwater Fishing Camera Recording
• Live Streaming & Content Creation
💡 Easy Setup Guide
Step 1 – Connect Signal Source: Plug your camera into the 3-IN-1 INPUT port. For loop-out monitoring, connect to LOOPING OUT port.
Step 2 – Connect to Device: Use USB cable to connect USB OUTPUT to your computer, or use OTG adapter for smartphone connection (driver-free).
Step 3 – Audio Input (Optional): Connect your audio source to the MIC IN port.
Step 4 – Start Capturing: Open your capture software, select "AFNCAP VIDEO" device and activate. Red LED will flash indicating successful signal capture.
🔧 Performance Features
• High Performance – Real-time capture with minimal latency
• Low Power Consumption – Energy-efficient design for extended use
• Heat Management – Device may feel warm during operation, this is normal. Circuit board designed for wide temperature tolerance and long-term reliability

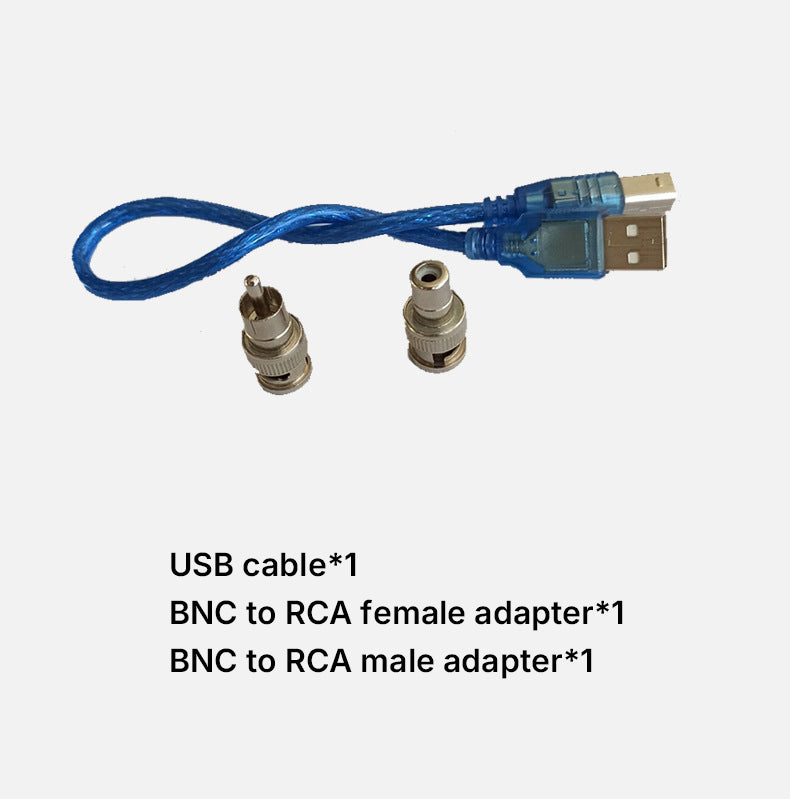

📦 Package Includes
• 1× AHD/TVI/CVI to USB 3.0 Capture Card
• 1× USB Cable
• 1× BNC to RCA Female Adapter
• 1× BNC to RCA Male Adapter
🛠️ Customization Available
We offer custom hardware and software solutions tailored to your specific requirements. Contact us for bulk orders and volume pricing.
Note: The compact design ensures portability without sacrificing performance. The device may generate heat during operation, which is completely normal and will not affect its lifespan or performance.
