XingZers Dual AV to USB 1080P Video Capture Module - 2 Channel CVBS to USB Converter UVC Plug & Play
XingZers Dual AV to USB 1080P Video Capture Module - 2 Channel CVBS to USB Converter UVC Plug & Play
Share
Couldn't load pickup availability
Professional 2-Channel AV to USB Video Capture Solution

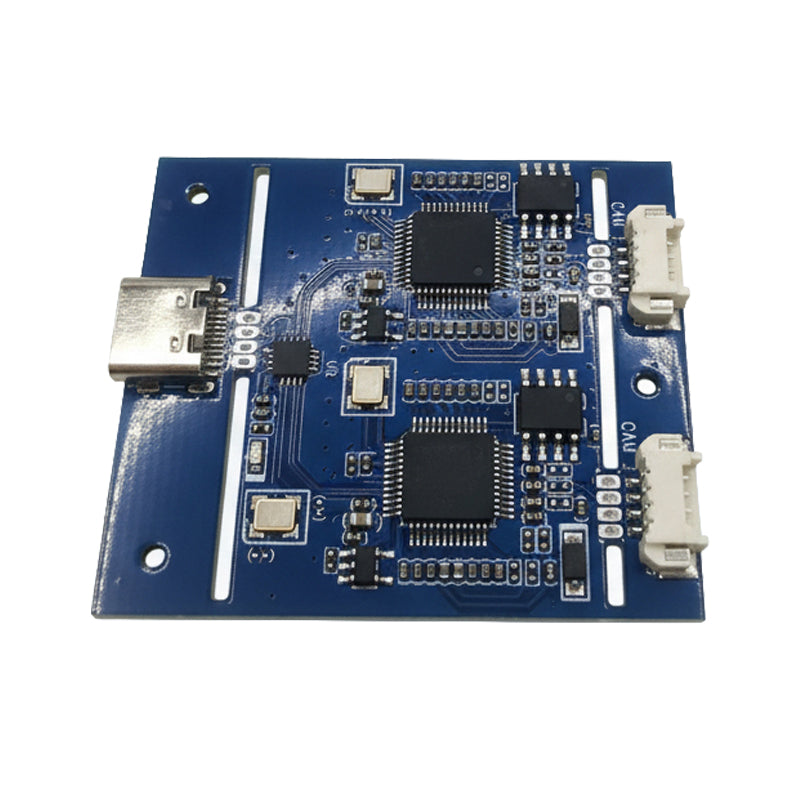

The XZSCC-C2U2 is a professional-grade USB video capture card that converts 2 channels of AV/CVBS analog signals (PAL/NTSC) into digital USB output. Perfect for digitizing legacy video equipment, security cameras, or any analog video source.
🎯 Key Features

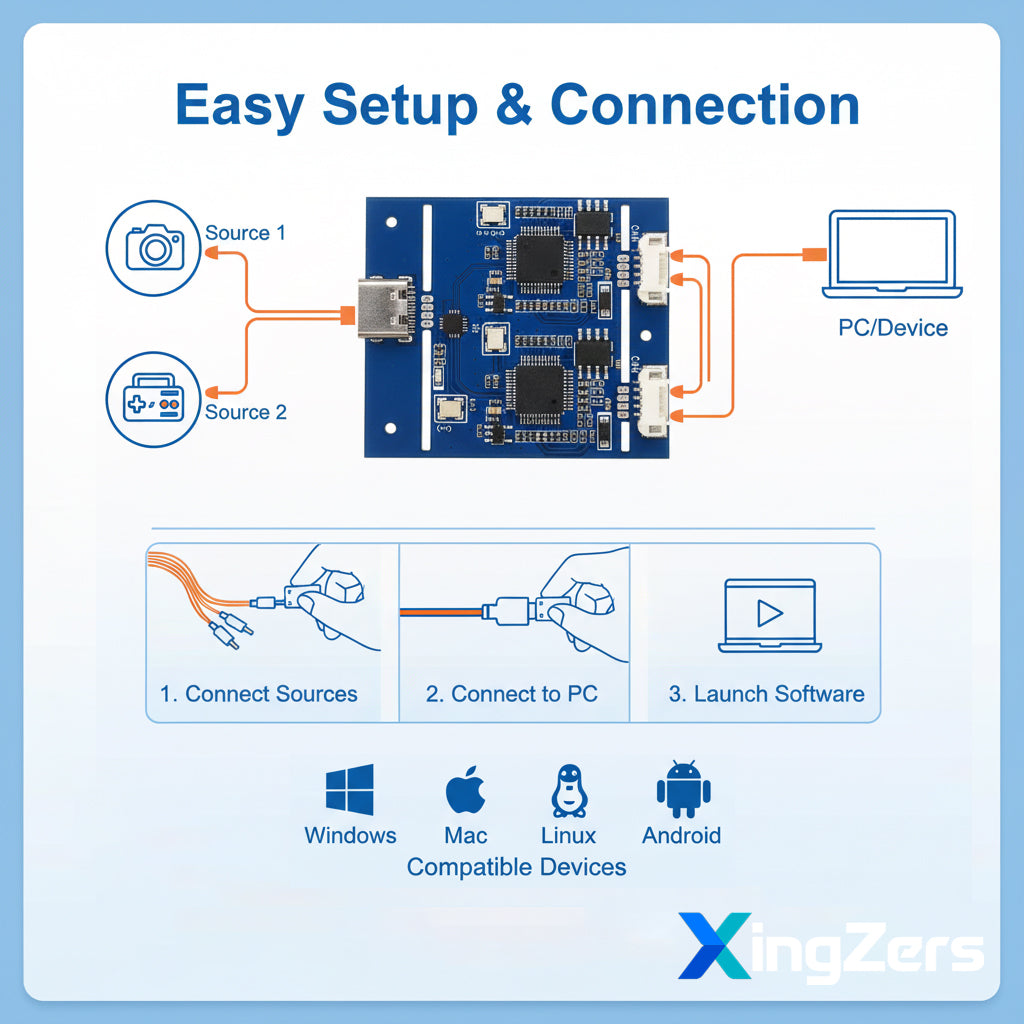

• Dual Channel Input – Capture two AV/CVBS analog video sources simultaneously
• True Plug & Play – UVC/UAC protocol, no driver installation required
• High Resolution Output – Supports up to 1920×1080P @ 30fps or 1280×720P @ 60fps
• Universal Compatibility – Works with Windows, Linux, Android, and macOS
• Synchronized Audio & Video – 48kHz stereo audio capture
• USB Type-C Interface – Modern, reversible connector for easy setup
⚙️ Technical Specifications
| Specification | Details |
|---|---|
| Input Interface | 2× 1.25mm 4-pin terminal connectors (5V / GND / Video Input / Audio Input) |
| Input Signal | AV/CVBS analog (PAL/NTSC compatible) |
| Output Interface | 1× USB Type-C |
| Output Format | MJPEG |
| Video Resolutions | 1920×1080 (30fps), 1280×720 (60fps), 800×600, 720×576, 720×480, 640×480, 480×320, 320×240 |
| Audio Output | 48kHz Stereo |
| Protocol | UVC/UAC (Universal Video/Audio Class) |
| Driver Requirement | Driver-free, plug and play |
| Operating Systems | Windows, Linux, Android, macOS |
| Compatible Software | OBS Studio, AMCap, PotPlayer, VLC, and more |
| Power Consumption | <3W (USB powered) |
| Dimensions | 45.5mm × 35.5mm (1.79" × 1.40") |
| Weight | 15g (0.53 oz) |
💼 Perfect For
• Digitizing VHS tapes and old camcorder footage
• Security camera monitoring and recording
• Live streaming from analog sources
• Video production and content creation
• Archiving analog video content
📦 What's in the Box
• 1× XZSCC-C2U2 Capture Module
• 2× 4-Pin Terminal Cables
🛠️ Factory Direct - Custom Solutions Available
We offer OEM/ODM customization services for bulk orders. Contact us for custom specifications and branding options.
