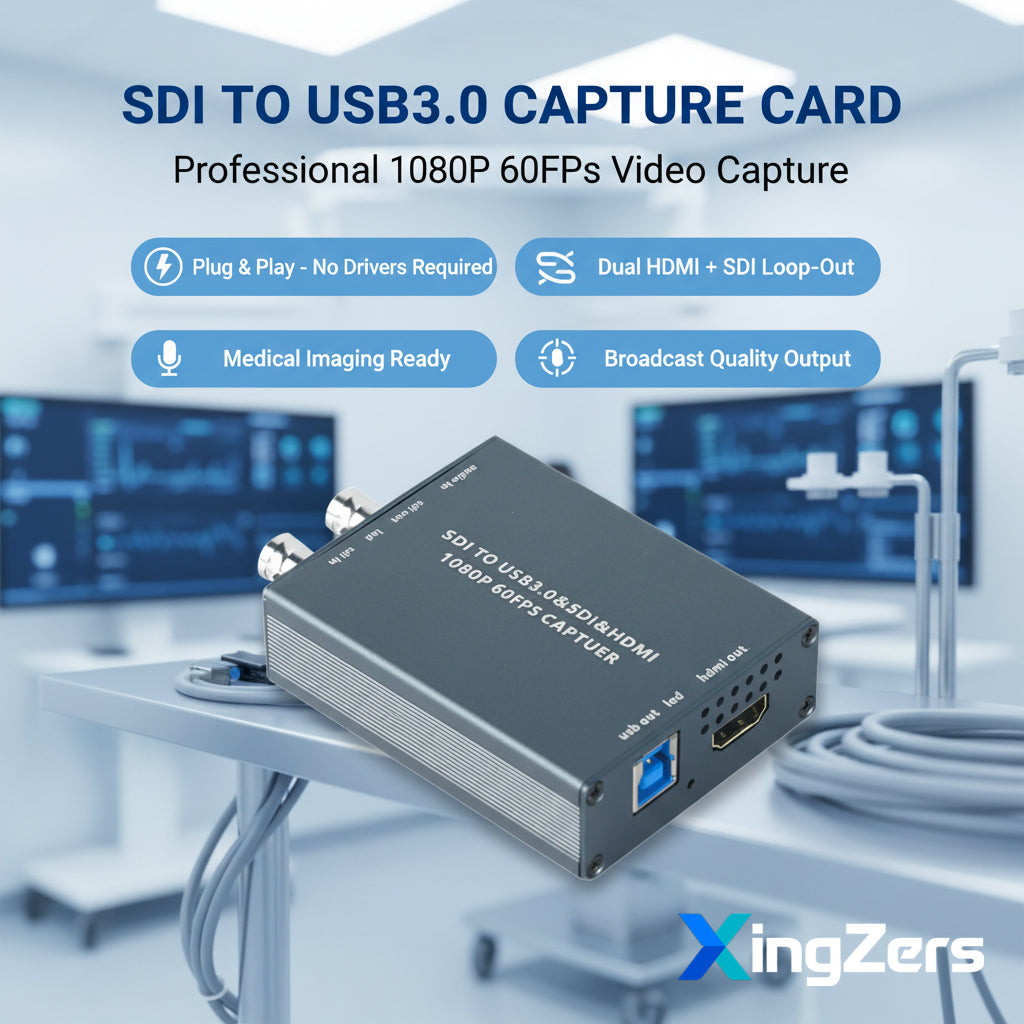

Professional SDI to USB3.0 Capture Card - Broadcast Quality Video Capture
Transform your SDI video signals into high-quality USB3.0 output with our professional-grade capture card. Perfect for live streaming, video conferencing, medical imaging, and broadcast applications. Capture stunning 1080P video at 60fps with zero latency and simultaneous HDMI + SDI loop-out capabilities.
🎯 Key Features
• True 1080P 60fps Capture – Experience smooth, professional-quality video capture with USB3.0 output supporting real-time 1080P at 60 frames per second
• Dual Lossless Loop-Out – Simultaneously output SDI and HDMI signals without quality degradation, perfect for monitoring while recording
• Plug & Play Convenience – UVC/UAC compliant, driver-free operation compatible with Windows, Linux, Android, and macOS systems
• Bus-Powered Design – No external power supply needed, powered directly via USB3.0 connection for maximum portability
• Independent Audio Input – Dedicated 3.5mm audio input with mixing support for professional audio integration
• Broadcast-Grade Quality – YUY2 MJPEG format ensures professional video quality suitable for medical, educational, and broadcast applications
• Ultra-Compact & Portable – Premium aluminum alloy housing with optimized heat dissipation, lightweight design perfect for mobile setups
• Universal Compatibility – Works seamlessly with OBS, Potplayer, VLC, Zoom, Teams, and all major video conferencing platforms
⚙️ Technical Specifications
| Specification | Details |
|---|---|
| Driver | Driver-free, Plug & Play |
| Input Interface | SDI Signal BNC Connector |
| Output Interfaces | USB3.0, BNC Connector, HDMI |
| Audio Interface | 3.5mm 3-Pole Jack |
| Supported Resolutions | 1920×1080, 1600×1200, 1360×768, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 720×480, 720×576, 640×480 |
| Video Format | YUY2 MJPEG |
| Frame Rates | 60, 50, 40, 30, 25, 15, 10 fps |
| Protocol | Standard UVC/UAC |
| Operating Systems | Windows / Linux / Android / macOS |
| Capture Software | OBS, Potplayer (Windows), Camera App |
| Power Consumption | <3W |
| Power Supply | USB Bus-Powered (No external power required) |
| Operating Temperature | -20°C to 65°C |
| Operating Humidity | 5% - 90% |
| Product Dimensions | 94mm (connector protrudes 14mm) × 64mm × 24mm |
| Product Weight | Unit only: 110g / Full set: 240g |
| Package Dimensions | 15cm × 10cm × 4cm |
| Housing Material | Aluminum Alloy with Heat Dissipation Vents |
💼 Professional Applications
• Medical Imaging – Capture high-quality video from medical equipment and surgical cameras
• Video Conferencing – Professional-grade video input for corporate meetings and remote collaboration
• Education & Training – Record lectures, demonstrations, and training sessions with broadcast quality
• Live Streaming – Stream to YouTube, Twitch, Facebook Live with professional SDI camera sources
• Security & Surveillance – Integrate SDI security cameras with computer-based recording systems
• Broadcast Production – Professional video capture for content creation and post-production workflows
💡 Easy Setup Guide
Step 1: Connect your SDI video source to the SDI IN port on the capture card.
Step 2: Connect the capture card to your computer, tablet, or smartphone (with OTG adapter) using the included USB3.0 cable.
Step 3: For audio input, connect your audio source to the AUDIO IN port (supports audio mixing).
Step 4: Optional: Connect HDMI or SDI loop-out to external monitors for simultaneous viewing.
Step 5: Open your preferred capture software (OBS, video conferencing platform, etc.) and select "AFN_CAPVIDEO" as your video source.
LED Indicators: Input LED blinks when no signal detected, stays solid when signal is present; Output LED is off when idle, solid when active.
🏗️ Premium Build Quality
Engineered with a precision-machined aluminum alloy housing featuring four rows of ventilation slots, this capture card delivers exceptional thermal performance for extended operation without overheating. The compact, lightweight design makes it perfect for mobile production setups, outside broadcasts, and travel.

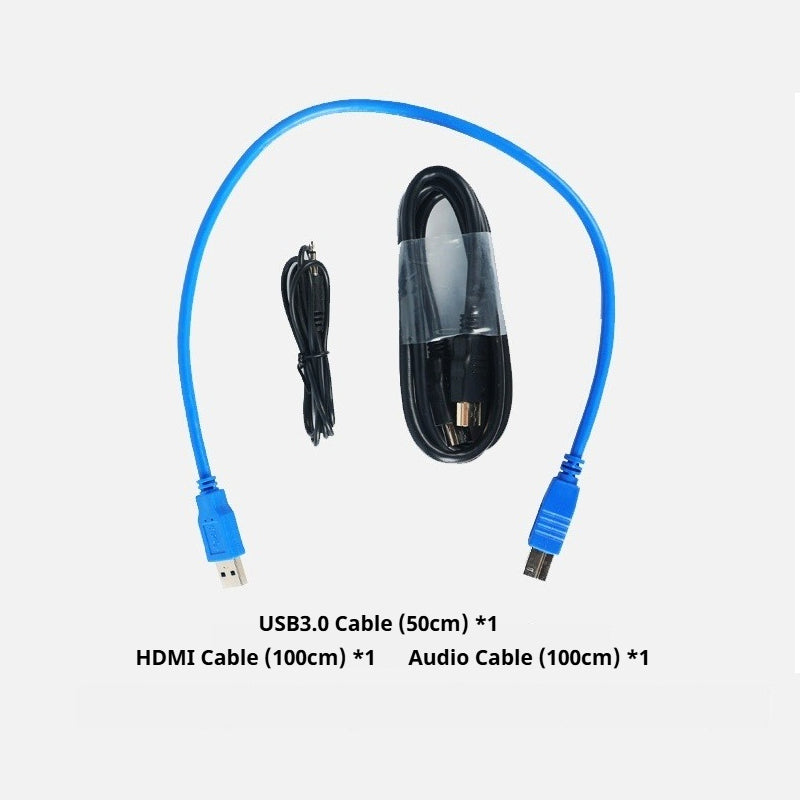

📦 What's in the Box
• 1× SDI to USB3.0 Capture Card (Main Unit)
• 1× USB3.0 Cable (50cm)
• 1× HDMI Cable (100cm)
• 1× 3.5mm Audio Cable (100cm)
• 1× User Manual
❓ Frequently Asked Questions
Q: Does this require driver installation?
A: No, the device is completely driver-free and works plug-and-play with all major operating systems.
Q: Can this device operate continuously without overheating?
A: Yes, the low-heat design combined with aluminum alloy housing and ventilation slots ensures reliable long-term operation without thermal issues.
Q: Can you customize the hardware or software?
A: Absolutely! Both hardware and software are developed by our partner factory, allowing us to accommodate various customization requests for OEM partners.
🛠️ Custom Solutions Available
Our partner factory develops both hardware and software in-house, enabling us to provide customized solutions tailored to your specific requirements. Contact us for OEM services, bulk pricing, and custom firmware development.
