Single Channel CVBS DVR Recorder Module 720P SD Card, 1CH Analog Signal Mini DVR Board for FPV Drone Vehicle Surveillance

Single Channel CVBS Analog Signal DVR Recorder Module 720P HD – 1CH Mini DVR Board with Audio Video Storage for FPV Drone, Vehicle Dashcam, Security Camera, TV/DVD Recording

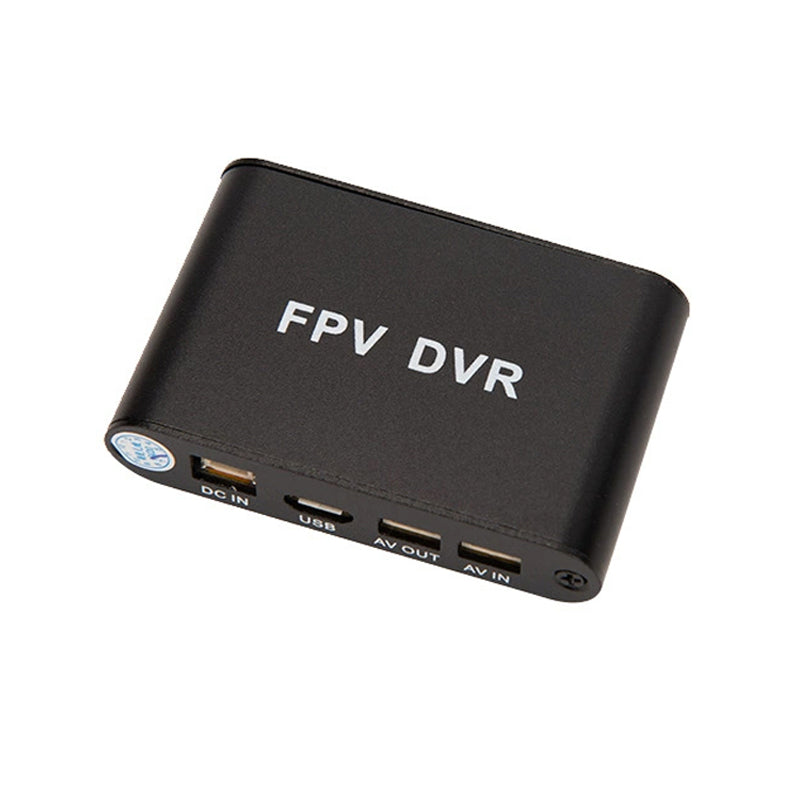

The XZSDR-D1M is a compact single-channel DVR recorder module that accepts CVBS analog signal input (PAL/NTSC compatible) and records 720P HD audio and video directly to a TF/Micro SD card. Whether you're building an FPV drone system, upgrading a vehicle dashcam, adding recording to a security camera, or capturing TV/DVD output, this ultra-small DVR module delivers reliable real-time recording in a space-saving aluminum alloy housing.

🎯 Key Features

• 720P HD Recording – Records at 1280×720 resolution for clear, detailed footage
• CVBS Analog Signal Input – Compatible with standard PAL/NTSC analog cameras, FPV cameras, and AV output devices
• Audio + Video Recording – Captures both audio and video simultaneously via AV input
• AV Signal Output – Supports AV output for real-time monitoring while recording
• Aluminum Alloy Housing – Premium metal construction for excellent heat dissipation and stable long-term operation
• Multiple Resolution Modes – VGA / High Definition / Smooth modes to balance quality and file size
• High Pixel Camera Support – Compatible with 12MP / 8MP / 4MP cameras
• TF Card Storage – Uses standard TF/Micro SD cards (not included); supports up to 32GB
• One-Button Operation – Simple single-button start/stop recording
• Loop Recording – Automatically overwrites oldest files when storage is full for continuous recording
• Wide Voltage Input – 5–15V DC, compatible with vehicle power, wall adapters, and USB power banks

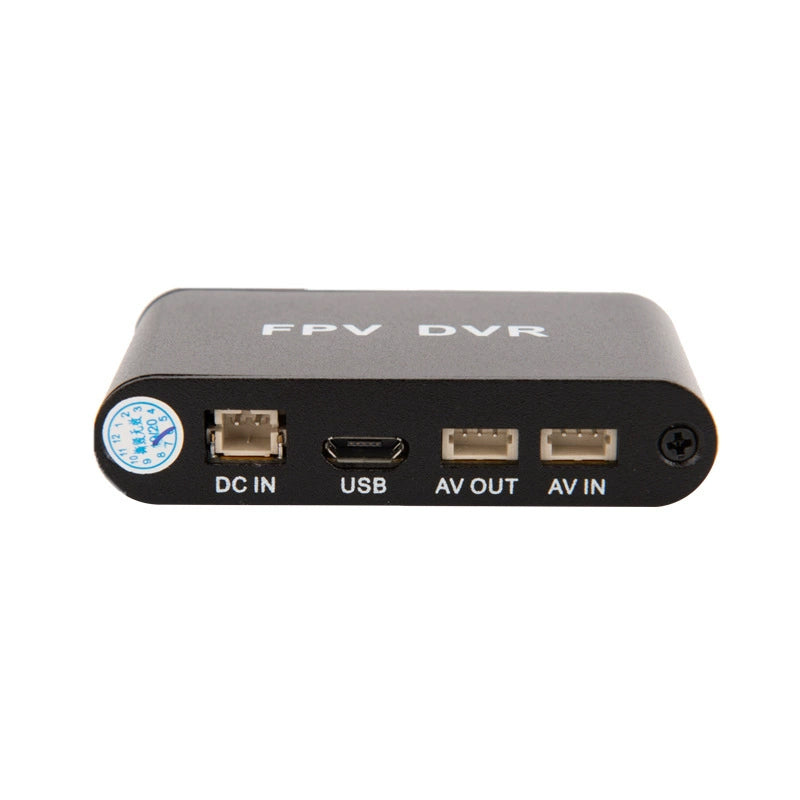

• Dual Power Ports – DC port and USB port both supported
• Ultra-Compact Design – Tiny form factor ideal for drones, RC vehicles, and tight installation spaces

💼 Applications

• FPV Drone / Quadcopter / Fixed-Wing / Multi-Rotor UAV – Record FPV flight footage directly on board; compatible with standard FPV cameras
• RC Aircraft & Aerial Photography – Lightweight DVR module for aerial video capture
• Vehicle Dashcam – Add recording capability to existing analog vehicle cameras; supports ignition-triggered recording when paired with vehicle power
• Security & Surveillance – Backup local recording for CVBS analog security cameras
• TV Program / DVD Recording – Record AV output from TV set-top boxes, DVD players, or VCRs to SD card
• Portable Field Recording – Power via USB power bank for fully mobile, off-grid recording
• Analog Camera Upgrade – Add SD card recording to any existing analog camera system without replacing cameras

⚙️ Technical Specifications

💡 Easy Setup Guide

1. Insert a TF/Micro SD card (up to 32GB, FAT32 formatted recommended).
2. Connect your CVBS analog camera or AV source to the AV input port.
3. Connect power via DC port (5–15V) or USB port (power bank compatible).
4. Press the button once to start recording; press again to stop.
5. Loop recording mode automatically manages storage — no manual deletion needed.

📦 What's in the Box

• 1× Single Channel DVR Recorder Module (XZSDR-D1M)

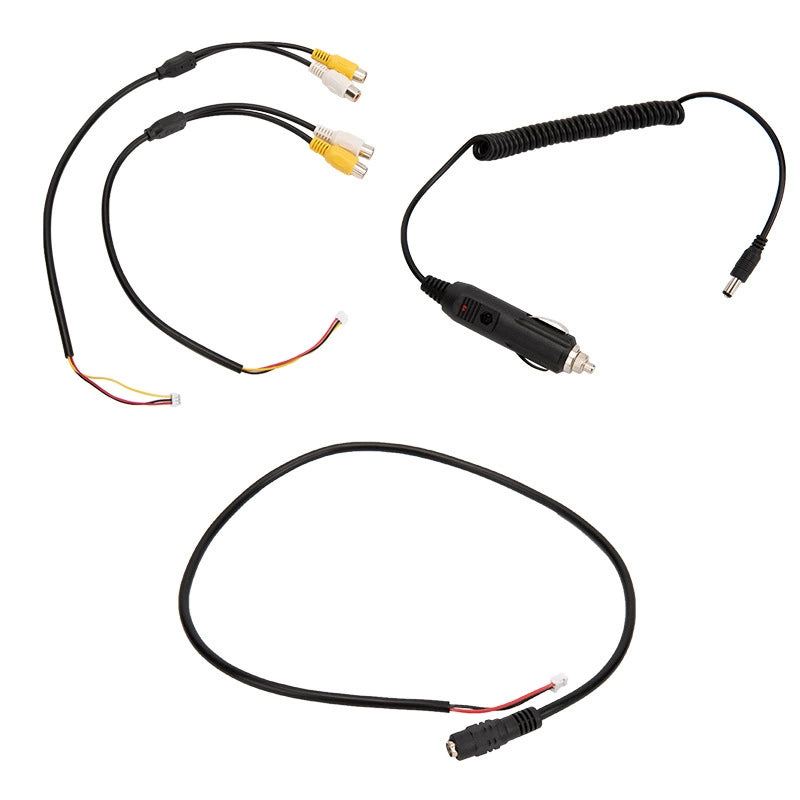

• 1× AV Connection Cable
• 1× DC Power Connector
• Power Cable (Choose One): 1× 12V Car Power Cable (vehicle installation) OR 1× 12V Power Adapter (wall outlet)
Note: TF/Micro SD card is not included and must be purchased separately.

❓ FAQ

Q: What SD card capacity is supported?
A: Supports TF/Micro SD cards up to 32GB. FAT32 format is recommended for best compatibility.

Q: Does it support PAL and NTSC signals?
A: Yes, the XZSDR-D1M is compatible with both PAL and NTSC CVBS analog signals.

Q: Can I use it with my FPV drone camera?
A: Yes. It is designed for FPV systems and works with standard CVBS FPV cameras used on drones, quadcopters, fixed-wing aircraft, and multi-rotor UAVs.

Q: Can I record TV programs or DVD player output?
A: Yes. Connect the AV output of your TV set-top box, DVD player, or VCR to the AV input of this module to record to SD card.

Q: Can I power it with a USB power bank?
A: Yes. The USB power port supports standard 5V USB power banks, making it fully portable for field use.

Q: Does it record audio as well as video?
A: Yes, it records both audio and video simultaneously when an audio source is connected to the AV input.

Q: What happens when the SD card is full?
A: In loop recording mode, the oldest files are automatically overwritten so recording continues without interruption.

🛠️ Custom Solutions Available

Need a custom configuration, bulk order, or OEM solution? Contact us — we support custom DVR module integrations for professional and industrial applications.
